超级大力神系列软管

时间:2019-12-30来源:利通

超级大力神系列软管

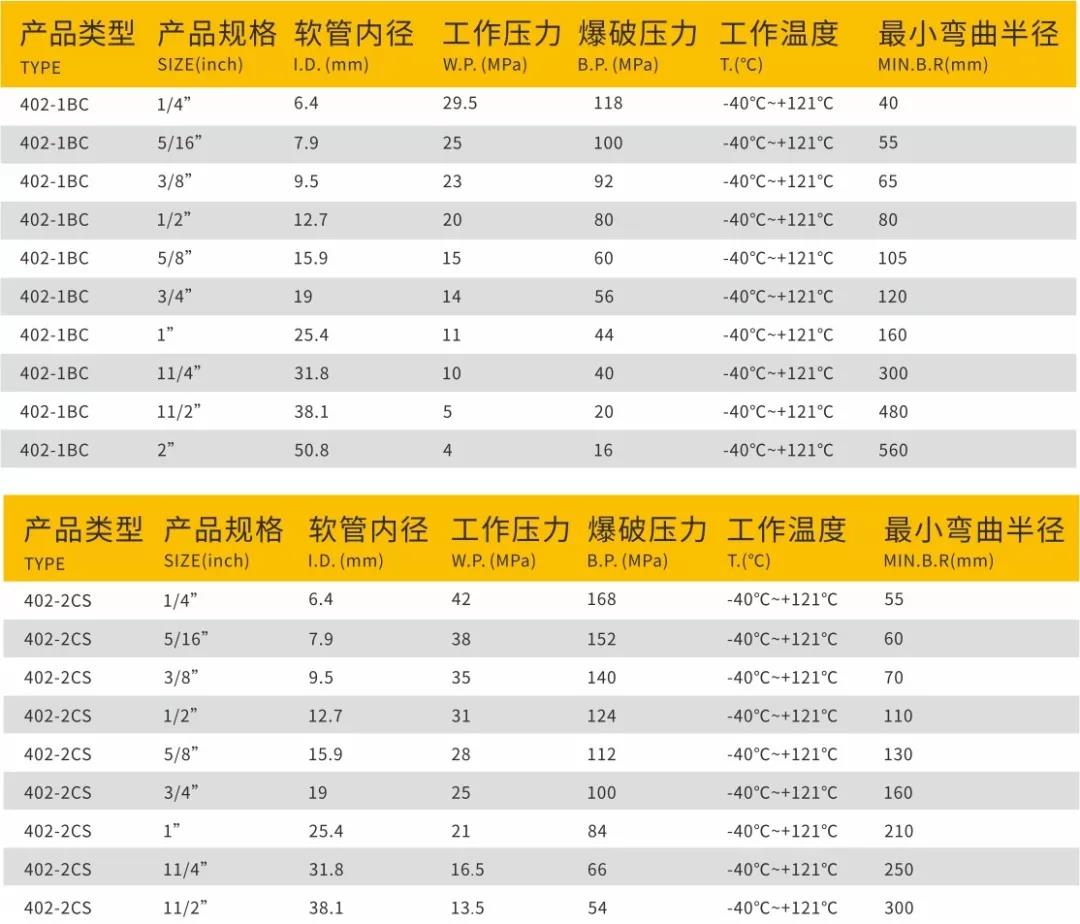

  超级大力神钢丝编织软管

  软管结构

  内胶层:耐热油合成橡胶

  增强层:特殊高强度超柔钢丝,1层编织脉冲≥30万次;2层编织脉冲≥60万次(符合ISO18752-BC、CS标准)

  外胶层:以耐老化复合橡胶为原料的免剥外胶黑色光面外胶层

  特性:长寿命:耐天候5年以上,质保2年(使用利通专供一体式软管接头),低弯曲:弯曲半径低于SAE/DIN标准30%,高压力:压力高于SAE/DIN标准25%

  温度范围:-40℃~+121℃(-40℉~+250℉)

  Hose Construction

  Inner Tube: hot oil resistant synthetic rubber

  Reinforcement: special high tensile super flexiblel steel wire, one braid≥300,000 impulse cycles, two braids ≥600,000 impulse cycles(comply with ISO18752-BC、CS standard)

  Outer Layer: skiving-free black smooth hose cover made of anti-aging synthetic rubber

  Features: Long service life: weather resistant for more than 5 years and warrantied for 2 years (with Letone specific hose connectors),Low bending radius: 30% lower than SAE/DIN standards,High pressure: 25% higher than SAE/DIN standards

  Temperature Range: -40℃~+121℃(-40℉~+250℉)

超级大力神系列软管

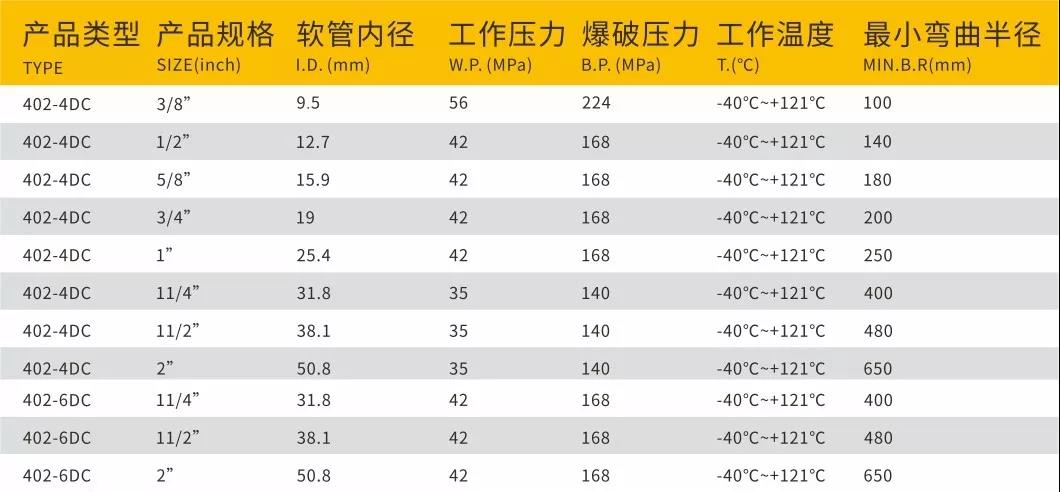

  超级大力神钢丝缠绕软管

  软管结构

  内胶层:耐热油合成橡胶

  增强层:多层高强度超柔钢丝,4层缠绕脉冲≥100万次(符合ISO18752-DC标准)

  外胶层:以耐老化复合橡胶为原料的免剥外胶黑色光面/毛面外胶层

  特性:高压力,低弯曲,长寿命(使用利通专供一体式软管接头,耐天候5年以上,质保2年)

  温度范围:-40℃~+121℃(-40℉~+250℉)

  Hose Construction

  Inner Tube: hot oil resistant synthetic rubber

  Reinforcement: multispiral high tensile super flexible steel wire, four plies≥ 1 million impulse cycles(comply with ISO18752-DC standard)

  Outer Layer: skiving-free black smooth/narrow cloth texture hose cover made of anti-aging synthetic rubber

  Features: High pressure,Low bending radius,Long service life(weather resistant for more than 5 years and warrantied for 2 years with Letone specific hose connectors)

  Temperature Range: -40℃~+121℃(-40℉~+250℉)

超级大力神系列软管
