美制JIC内螺纹74°内锥面 SAE J514

在线咨询
全国服务热线 :
美制JIC内螺纹74°内锥面 SAE J514
数据展示

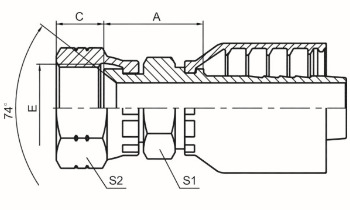

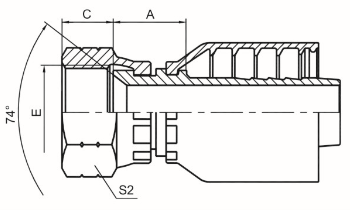

代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S2
26711-04-04RW -- 7/16”X20 6 04 16.5 9 15
26711-05-04RW -- 1/2”X20 6 04 17 9.5 17
26711-05-05RW -- 1/2”X20 8 05 17 9.5 17
26711-06-04TRW -- 9/16”X18 6 04 14.5 10.5 19
26711-06-05RW -- 9/16”X18 8 05 17 10.5 19
26711-06-06RW -- 9/16”X18 10 06 17 10.5 19
26711-06-08RW 26712-06-08RW 9/16”X18 12 08 18 10.5 19
26711-08-06TRW -- 3/4”X16 10 06 16 11 24
26711-08-08RW 26712-08-08RW 3/4”X16 12 08 20 11 24
26711-08-10RW 26712-08-10RW 3/4”X16 16 10 20.5 11 24
26711-10-08RW 26712-10-08RW 7/8”X14 12 08 20.5 13 27
26711-10-10RW 26712-10-10RW 7/8”X14 16 10 21 13 27
26711-10-12TRW 26712-10-12TRW 7/8”X14 20 12 20.5 13 27
26711-12-08TRW 26712-12-08TRW 1.1/16”X12 12 08 19 15 32
26711-12-10TRW 26712-12-10TRW 1.1/16”X12 16 10 19.5 15 32
26711-12-12RW 26712-12-12RW 1.1/16”X12 20 12 22 15 32
26711-12-16RW 26712-12-16RW 1.1/16”X12 25 16 25.2 15 32
26711-14-12RW 26712-14-12RW 1.3/16”X12 20 12 22 15 36
26711-16-12TRW 26712-16-12TRW 1.5/16”X12 20 12 18.5 16 41
26711-16-16RW 26712-16-16RW 1.5/16”X12 25 16 25.2 16 41
26711-16-20RW 26712-16-20RW 1.5/16”X12 32 20 25.7 16 41
26711-20-16TRW 26712-20-16TRW 1.5/8”X12 25 16 23.2 17 50
26711-20-20WRW 26712-20-20WRW 1.5/8”X12 32 20 26.2 17 50
26711-24-20TRW 26712-24-20TRW 1.7/8”X12 32 20 22.7 20 55
26711-24-24WRW 26712-24-24WRW 1.7/8”X12 40 24 32 20 55
26711-32-24TRW 26712-32-24TRW 2.1/2”X12 40 24 28.5 23.5 75
26711-32-32WRW 26712-32-32WRW 2.1/2”X12 50 32 36 23.5 75
