超高压水喷射软管

应用范围:

建造和造船业(对于超高压抢>300Mpa)

工业清洗 加氢气除垢和出去积累的污垢和物质

对于工作压力高达280Mpa(40.600psi)

技术规格:

芯管:聚甲醛

压力加强层:六层最大拉力钢丝缠绕层

外胶:1.聚酰胺 ;2.聚氨酯,耐磨

标准颜色:1:红色 ;2.黄色;

温度范围:-10°C至+ 70°C



Applications:

Construction and shipbuilding industry(for very high pressure lances with>300Mpa)

Industrial cleaning

Hydrodemolition and removal of accumulated dirt and materials

For working pressure up to 280Mpa(40.600psi)

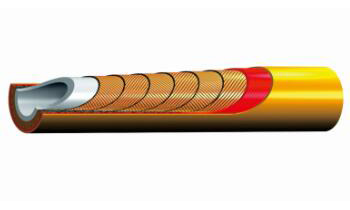

Technical Specifications:

Core tube:Polyoxymethylene:

Pressure reinforcement:

Six spiral layers of maximum tensile steel wire;

Cover:1st:Polyamide;2nd:Polyurethane,abrasion resistant;

Standard color:1st:red;2nd:yellow;

Temperature range:-10°C up to+ 70°C

详细参数

规格 Specifications

软管内径
I .D

mm

软管外径
O .D

mm

最大工作压力

MAX Rec.WP(PSI)

最小爆破压力

Mpa

Weight 重量

(KG/M)

5/32 12 300 780 0.40
3/16 13 250 625 0.41
3/8 21.6 160 400 0.94
1/2 27 200 500 1.85
3/4 33.7 112 280 1.76
