45°美制ORFS内螺纹平面 ISO 12151-1-SAE J516
数据展示

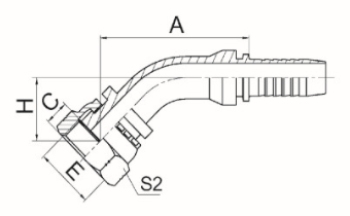

代  号 PART NO. 螺纹E THREAD E 软 管HOSE BORE 尺 寸DIMENSIONS
公称内径 DN 标号DASH A    H       C      S2
24241-04-04 9/16”X18 6 04 45.5 23.4 8.5 19
24241-04-05 9/16”X18 8 05 47.6 24.3 8.5 19
24241-04-06 9/16”X18 10 06 49.2 24.9 8.5 19
24241-06-04T 11/16”X16 6 04 39.5 17.4 10 22
24241-06-05T 11/16”X16 8 05 42.3 19 10 22
24241-06-06 11/16”X16 10 06 51.3 27.1 10 22
24241-08-06T 13/16”X16 10 06 44.6 20.3 11 27
24241-08-08 13/16”X16 12 08 65.7 30.7 11 27
24241-08-10 13/16”X16 16 10 76.5 31.7 11 27
24241-10-08T 1”X14 12 08 58.2 23.3 13.5 30
24241-10-10 1”X14 16 10 79.2 34.9 13.5 30
24241-12-08T 1.3/16”X12 12 08 58.2 23.3 15 36
24241-12-10T 1.3/16”X12 16 10 68.2 23.9 15 36
24241-12-12 1.3/16”X12 20 12 87 39.5 15 36
24241-12-16 1.3/16”X12 25 16 95.3 41 15 36
24241-16-12T 1.7/16”X12 20 12 74 29.6 14.8 41
24241-16-14T 1.7/16”X12 22 14 78.7 28.5 14.8 41
24241-16-16T 1.7/16”X12 25 16 84.1 29.7 14.8 41
24241-20-16T 1.11/16”X12 25 16 84.1 29.7 15 50
24241-20-20W 1.11/16”X12 32 20 111.2 49 15 50
24241-24-20T 2”X12 32 20 94.5 33.8 14.8 60
24241-24-24T 2”X12 40 24 108.5 37.7 14.8 60
注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为24242-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 24242-XX-XX.

注:实际参数以最新图册为准
