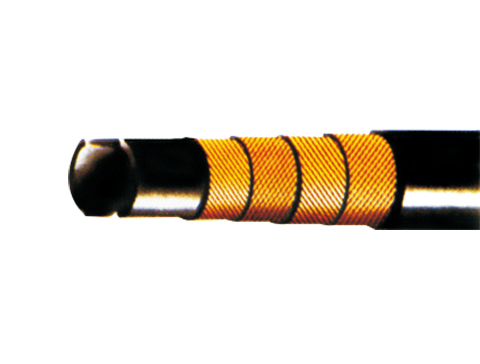

LT795
超高压树脂软管W.P.10000PSI
产品应用:适用于在高压下输送水和液压油等介质,广泛应用于高压清洗等行业

压力范围:690bar(10000psi)
內胶层:尼龙
增强层:四层钢丝缠绕
外胶层:黑色或彩色聚氨酯
温度范围:-40℃ 至 +100℃(-40℉ 至 +212℉)
在线咨询
全国服务热线 :
超高压树脂软管W.P.10000PSI
数据展示
软管内径 I.D. 软管外径 O.D. 工作压力 W.P. 爆破压力 W.P. 最小弯曲半径 MIN.B.P. 参考重量 W.T.
Dash In. mm mm MPa psi MPa psi mm g/m
-4 1/4 6.3 12.5 69 10000 207 30000 110 255
-5 5/16 7.9 14.5 69 10000 207 30000 130 310
-6 3/8 9.5 17.2 69 10000 207 30000 150 375
-8 1/2 12.7 20.8 69 10000 207 30000 200 570
可选软管接头
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。

     600型靠青铜座提供主密封.
    推荐用于蒸汽系统,用于生产、钻井和修井的歧管和管线连接。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。

    602型装有弹性丁腈橡胶密封环,用于密封并保护由壬钢对钢的配合。
        推荐用于歧管管线连接,车载及泥浆输送场合,可用于无压密封由壬。采用对焊Sch.80/160。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。

    1003型由壬具有一个球形座,可以提供偏离中心71/2度的偏斜或角度调整,总的偏斜能力是15度。除钢对钢的配合外,丁腈橡胶O-型环保证了在任何偏斜位置连接的气密性.可提供管线螺纹或对焊连接.
        推荐用于不能对正时的高压管线连接,可应用于空气、水、油、泥浆或气体使用场合。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。

    FIG1004型由壬5”6”两种规格为橡胶O型密封圈密封。对于同心性要求高,反之会产生密封事故。为了克服这种状况,最新引入了两个新的大小的对接焊缝的由

    壬,利用唇型弹性体密封安装。这种新型由壬被称为“FIG1004型”。可以标准服务或酸气(H2s)。
    Fig.1004联盟的目的是工作压力以下。
    标准服务:10000 psi cwp
    酸气服务:7500 psi cwp
  • 1502型由壬是使用最广泛的,可以管线螺纹和焊接连接,分为标准和酸气服务,最新引进Fig5”6”型,配有可更换的弹性丁腈橡胶密封环,坚固壁厚设计用于高压系统。
    推荐用于注水泥、压裂、酸化、测试及堵塞和压井管线,也可用于无压密封连接,采用对焊Sch XXH。
  • 2202型由壬只应用对焊服务,配有一个可更换的弹性丁腈橡胶密封环组合在不锈钢衬管中,在超压力应用场合提供完全的挤压保护。可拆开的螺母/扇形环/持环设计简化了螺母从管道上的拆卸。
  • 部件号 Part Number 规格(英寸) Size (in.) 外径A (英寸) OD A (in.) Bore B 圆环C (英寸) Circle C (in.) 厚度 (英寸) Thickness (in.) 螺栓孔数量 Number Bolt Holes 螺栓孔直径 Diameter Bolt Holes (in.) 单个重量 (公斤) Weight Each (KG)
    SSPF3160075 3/4 3 7/8
    1.100
    2 3/4 1/2 4 5/8 0.62
    SSPF3160100 1 4 1/4
    1.360
    3 1/8 1/2 4 5/8 0.75
    SSPF3160125 1 1/4 4 5/8
    1.700
    3 1/2 1/2 4 5/8 0.91
    SSPF3160150 1 1/2 5
    1.950
    3 7/8 1/2 4 5/8 1.02
    SSPF3160200 2 6
    2.440
    4 3/4 1/2 4 3/4 1.39
    SSPF3160250 2 1/2 7
    2.940
    5 1/2 1/2 4 3/4 1.98
    SSPF3160300 3 7 1/2
    3.570
    6 1/2 4 3/4 2.14
    SSPF3160400 4 9
    4.570
    7 1/2 1/2 8 3/4 2.88
    SSPF3160500 5 10
    5.660
    8 1/2 1/2 8 7/8 3.21
    SSPF3160600 6 11
    6.720
    9 1/2 1/2 8 7/8 3.47
    SSPF3160800 8 13 1/2
    8.720
    11 3/4 1/2 8 7/8 5.19
    SSPF3161000 10 16
    10.880
    14 1/4 1/2 12 1 6.06
    SSPF3161200 12 19
    12.880
    17 1/2 12 1 9.53
    SSPF3161400 14 21
    14.140
    18 3/4 1/2 12 1 1/8 12.62
    SSPF3161600 16 23 1/2
    16.160
    21 1/4 1/2 16 1 1/8 13.61
  • 2202型由壬只应用对焊服务,配有一个可更换的弹性丁腈橡胶密封环组合在不锈钢衬管中,在超压力应用场合提供完全的挤压保护。可拆开的螺母/扇形环/持环设计简化了螺母从管道上的拆卸。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API

    Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。

    1002型装有弹性丁腈橡胶密封环
        推荐用于注水泥、压裂、酸化、测试及堵塞和压井管线场合。设计用于高压系统,包括车载系统。也可用作无压密封由壬。采用以焊Sch.160或XXH。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。 吸入端由壬材质为碳钢。螺母和O型圈是常规尺寸。尺寸有4”和5”。连接是螺纹和承插焊接。 由壬压力级别:500 PSI wp。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。

    207型由壬封头帽上装有厂腈橡胶O-型环以进行有效的封闭,螺纹接头可与200和206型螺纹接头进行互换,可用型号采用对焊Sch.40。
    推荐用于空气、水、油或汽应用场合密封歧管连接和保护管线接头螺纹。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。

    211型由壬接头的绝缘设计消除了连接中金属对金属的接触,同时复式抗磨损精密制造的合成橡胶提供了有效的密封。可更换环形密封组件以延长由壬的使用寿命。
     推荐用于存在电解腐蚀问题的应用场合,或需要静电隔离管线部分的场合。
  • 采用高强度合金钢锻造而成,严格的热处理确保接头有匀均一致的金相组织和承压能力,所使用材料完全符合美国ASTM和AISI标准,产品技术指标完全符合API Spec 6A标准,产品密封可靠、装卸快捷、通用互换性好。产品可用管线螺纹、油管螺纹、对焊式或压密封端部连接。



    400型采用壁厚和坚固的设计,具有环形和锥形金属密封,以便容易进行对中和可靠的密封.适用于空气、水、石油、天然气和泥浆服务4000 psi NSCWP。
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREAD E 公称内径 DN 标号DASH A   C    S2
    19611-04-04RW -- G1/4”X19 6 04 28 16 17
    19611-06-06RW -- G3/8”X19 10 06 29.5 18 19
    19611-08-08RW 19612-08-08RW G1/2”X14 12 08 34.5 20 22
    19611-12-12RW 19612-12-12RW G3/4”X14 20 12 38 22 30
    19611-16-16RW 19612-16-16RW G1”X11 25 16 44.2 24 36

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREAD E 公称内径 DN 标号DASH A C  S1   S2
    29611-04-04RW -- G1/4”X19 6 04 20.5 8 19 19
    29611-04-05RW -- G1/4”X19 8 05 20.5 8 19 19
    29611-06-04RW -- G3/8”X19 6 04 23.5 9 22 22
    29611-06-06RW -- G3/8”X19 10 06 23 9 22 22
    29611-08-06RW -- G1/2”X14 10 06 24.5 12 27 27
    29611-08-08RW 29612-08-08RW G1/2”X14 12 08 25.5 12 27 27
    29611-10-10RW 29612-10-10RW G5/8”X14 16 10 29.5 11.5 30 30
    29611-12-10RW 29612-12-10RW G3/4”X14 16 10 29.5 13.5 32 32
    29611-12-12RW 29612-12-12RW G3/4”X14 20 12 28.5 13.5 32 32
    29611-16-16RW 29612-16-16RW G1”X14 25 16 33.2 16 41 41
    29611-20-20WRW 29612-20-20WRW G1.1/4”X11 32 20 39.2 18.5 50 50
    29611-24-24WRW 29612-24-24WRW G1.1/2”X11 40 24 41.5 19 55 55
    29611-32-32WRW 29612-32-32WRW G2”X11 50 32 49 23 70 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREAD E 公称内径 DN 标号DASH A C H  S1   S2
    29641-04-04RW -- G1/4”X19 6 04 44.9 8 21.3 19 19
    29641-06-06RW -- G3/8”X19 10 06 50.2 9 25 22 22
    29641-08-08RW 29642-08-08RW G1/2”X14 12 08 63.9 12 27.5 27 27
    29641-10-10RW 29642-10-10RW G5/8”X14 16 10 76.6 11.5 31.3 30 30
    29641-12-12RW 29642-12-12RW G3/4”X14 20 12 79.9 13.5 34.1 32 32
    29641-16-16RW 29642-16-16RW G1”X14 25 16 93.2 16 36.8 41 41
    29641-20-20WRW 29642-20-20WRW G1.1/4”X11 32 20 107 18.5 45.1 50 50
    29641-24-24WRW 29642-24-24WRW G1.1/2”X11 40 24 122.8 19 50.1 55 55
    29641-32-32WRW 29642-32-32WRW G2”X11 50 32 149.9 23 60.1 70 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREAD E 公称内径 DN 标号DASH A C H  S1   S2
    29691-04-04RW -- G1/4”X19 6 04 31.5 8 38 19 19
    29691-04-05RW -- G1/4”X19 8 05 34.5 8 41 19 19
    29691-06-06RW -- G3/8”X19 10 06 36.3 9 46.3 22 22
    29691-08-08RW 29692-08-08RW G1/2”X14 12 08 42.5 12 53 27 27
    29691-10-10RW 29692-10-10RW G5/8”X14 16 10 57 11.5 61 30 30
    29691-12-12RW 29692-12-12RW G3/4”X14 20 12 63.2 13.5 67.5 32 32
    29691-16-16RW 29692-16-16RW G1”X14 25 16 78.9 16 77.5 41 41
    29691-20-20WRW 29692-20-20WRW G1.1/4”X11 32 20 92.7 18.5 94.5 50 50
    29691-24-24WRW 29692-24-24WRW G1.1/2”X11 40 24 111.4 19 109.5 55 55
    29691-32-32WRW 29692-32-32WRW G2”X11 50 32 138.6 23 133.8 70 70

  • 代  号 螺纹E 软     管 尺     寸
    公称内径 标      号 A    C       H      S2
    22141-02-04 G1/8”X28 6 04 43.7 2 21.6 14
    22141-04-03 G1/4”X19 5 03 41.3 4 20.4 19
    22141-04-04 G1/4”X19 6 04 43.7 4 21.6 19
    22141-06-05 G3/8”X19 8 05 46.2 5 22.9 22
    22141-06-06 G3/8”X19 10 06 48.1 5 23.9 22
    22141-06-08 G3/8”X19 12 08 60.4 5 25.4 22
    22141-08-04T G1/2”X14 6 04 43.9 6 23.8 27
    22141-08-06T G1/2”X14 10 06 42.5 6 18.2 27
    22141-08-08 G1/2”X14 12 08 61.8 6 26.8 27
    22141-08-10 G1/2”X14 16 10 73 6 29 27
    22141-10-10 G5/8”X14 16 10 73.7 8 28.9 30
    22141-10-12 G5/8”X14 20 12 79.8 8 32.5 30
    22141-12-08T G3/4”X14 12 08 63.2 9.5 28.3 32
    22141-12-10 G3/4”X14 16 10 70.4 9.5 29.6 32
    22141-12-12 G3/4”X14 20 12 80.6 9.5 33.2 32
    22141-16-12 G1”X11 20 12 81.6 11 33.5 41
    22141-16-14 G1”X11 22 14 83.3 11 33 41
    22141-16-16 G1”X11 25 16 89.2 11 35 41
    22141-20-16T G1.1/4”X11 25 16 91.4 9.1 37.1 50
    22141-20-20W G1.1/4”X11 32 20 102.9 10 41.2 50
    22141-24-24W G1.1/2”X11 40 24 119.8 11.5 49 55
    22141-32-32W G2”X11 50 32 137.4 15 53 70
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为22142-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 22142-XX-XX.
  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A C D H L
    87341-08-08RW 87342-08-08RW 1/2” 12 08 59.7 30.2 24 23.3 6.73
    87341-12-08RW 87342-12-08RW 3/4” 12 08 60.4 38.1 31.7 24 6.73
    87341-12-10RW 87342-12-10RW 3/4” 16 10 70.6 38.1 31.7 25.3 6.73
    87341-12-12RW 87342-12-12RW 3/4” 20 12 73.9 38.1 31.7 28.1 6.73
    87341-12-16RW 87342-12-16RW 3/4” 25 16 86.1 38.1 31.7 29.7 6.73
    87341-16-12RW 87342-16-12RW 1” 20 12 73.9 44.4 38 28.1 8
    87341-16-16RW 87342-16-16RW 1” 25 16 86.1 44.4 38 29.7 8
    87341-16-20RW 87342-16-20RW 1” 32 20 95.7 44.4 38 33.8 8
    87341-20-16RW 87342-20-16RW 1.1/4” 25 16 86.1 50.8 43 29.7 8
    87341-20-20RW 87342-20-20RW 1.1/4” 32 20 95.7 50.8 43 33.8 8
    87341-24-20RW 87342-24-20RW 1.1/2” 32 20 97.1 60.3 50 35.2 8
    87341-24-24RW 87342-24-24RW 1.1/2” 40 24 111.8 60.3 50 39.1 8
    87341-32-24RW 87342-32-24RW 2” 40 24 111.8 71.4 62 39.1 9.53
    87341-32-32RW 87342-32-32RW 2” 50 32 136.1 71.4 62 46.3 9.53

  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A C D L
    97312-08-08 1/2” 12 08 45.5 30.2 24 6.73
    97312-12-08 3/4” 12 08 47.5 38.1 31.7 6.73
    97312-12-10 3/4” 16 10 49 38.1 31.7 6.73
    97312-12-12 3/4” 20 12 48.5 38.1 31.7 6.73
    97312-12-16 3/4” 25 16 49 38.1 31.7 6.73
    97312-16-12 1” 20 12 51 44.4 38 8
    97312-16-16 1” 25 16 48 44.4 38 8
    97312-16-20 1” 32 20 53 44.4 38 8
    97312-20-16 1.1/4” 25 16 57 50.8 43 8
    97312-20-20 1.1/4” 32 20 56 50.8 43 8
    97312-24-20 1.1/2” 32 20 68 60.3 50 8
    97312-24-24 1.1/2” 40 24 74 60.3 50 8
    97312-32-24 2” 40 24 70 71.4 62 9.53
    97312-32-32 2” 50 32 70 71.4 62 9.53
    97312-40-40 2.1/2” 64 40 76 84.1 74 9.53
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87312-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87312-XX-XX.
  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A    C       D    H    L
    87691-08-08RW 87692-08-08RW 1/2” 12 08 42.5 30.2 24 48 6.73
    87691-12-08RW 87692-12-08RW 3/4” 12 08 42.5 38.1 31.7 52 6.73
    87691-12-10RW 87692-12-10RW 3/4” 16 10 57 38.1 31.7 56.5 6.73
    87691-12-12RW 87692-12-12RW 3/4” 20 12 63.2 38.1 31.7 63 6.73
    87691-12-16RW 87692-12-16RW 3/4” 25 16 78.9 38.1 31.7 71.5 6.73
    87691-16-12RW 87692-16-12RW 1” 20 12 63.2 44.4 38 66 8
    87691-16-16RW 87692-16-16RW 1” 25 16 78.9 44.4 38 74.5 8
    87691-16-20RW 87692-16-20RW 1” 32 20 92.7 44.4 38 85.5 8
    87691-20-16RW 87692-20-16RW 1.1/4” 25 16 78.9 50.8 43 78.5 8
    87691-20-20RW 87692-20-20RW 1.1/4” 32 20 92.7 50.8 43 89.5 8
    87691-24-20RW 87692-24-20RW 1.1/2” 32 20 92.7 60.3 50 94.5 8
    87691-24-24RW 87692-24-24RW 1.1/2” 40 24 111.4 60.3 50 108 8
    87691-32-24RW 87692-32-24RW 2” 40 24 111.4 71.4 62 116 9.53
    87691-32-32RW 87692-32-32RW 2” 50 32 138.6 71.4 62 136.3 9.53

  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A    C       D    H    L
    87391-08-08RW 87392-08-08RW 1/2” 12 08 42.5 30.2 24 47 6.73
    87391-12-08RW 87392-12-08RW 3/4” 12 08 42.5 38.1 31.7 48 6.73
    87391-12-10RW 87392-12-10RW 3/4” 16 10 57 38.1 31.7 52.5 6.73
    87391-12-12RW 87392-12-12RW 3/4” 20 12 63.2 38.1 31.7 59 6.73
    87391-12-16RW 87392-12-16RW 3/4” 25 16 78.9 38.1 31.7 67.5 6.73
    87391-16-12RW 87392-16-12RW 1” 20 12 63.2 44.4 38 59 8
    87391-16-16RW 87392-16-16RW 1” 25 16 78.9 44.4 38 67.5 8
    87391-16-20RW 87392-16-20RW 1” 32 20 92.7 44.4 38 78.5 8
    87391-20-16RW 87392-20-16RW 1.1/4” 25 16 78.9 50.8 43 67.5 8
    87391-20-20RW 87392-20-20RW 1.1/4” 32 20 92.7 50.8 43 78.5 8
    87391-24-20RW 87392-24-20RW 1.1/2” 32 20 92.7 60.3 50 80.5 8
    87391-24-24RW 87392-24-24RW 1.1/2” 40 24 111.4 60.3 50 94 8
    87391-32-24RW 87392-32-24RW 2” 40 24 111.4 71.4 62 94 9.53
    87391-32-32RW 87392-32-32RW 2” 50 32 138.6 71.4 62 114.3 9.53

  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A    C       D       H       L
    87342-08-08 1/2” 12 08 56.5 30.2 24 23.5 6.73
    87342-12-08 3/4” 12 08 58.9 38.1 31.7 24 6.73
    87342-12-10 3/4” 16 10 69.9 38.1 31.7 25.3 6.73
    87342-12-12 3/4” 20 12 73.5 38.1 31.7 29.5 6.73
    87342-16-12 1” 20 12 76.3 44.4 38 28.9 8
    87342-16-16 1” 25 16 83 44.4 38 31 8
    87342-16-20 1” 32 20 94.5 44.4 38 33.8 8
    87342-20-16 1.1/4” 25 16 82 50.8 43 30.5 8
    87342-20-20 1.1/4” 32 20 95 50.8 43 36 8
    87342-24-20 1.1/2” 32 20 95.9 60.3 50 35.2 8
    87342-24-24 1.1/2” 40 24 108 60.3 50 42 8
    87342-32-24 2” 40 24 109.9 71.4 62 39.1 9.53
    87342-32-32 2” 50 32 129.3 71.4 62 43 9.53
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87342-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87342-XX-XX.
  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A    C       D       H    L
    87642-08-08 1/2” 12 08 57.5 31.7 24 25 7.75
    87642-08-12 1/2” 20 12 77 31.7 24 29.6 7.75
    87642-12-10 3/4” 16 10 72.5 41.3 32 28.2 8.76
    87642-12-12 3/4” 20 12 75.5 41.3 32 32 8.76
    87642-16-16 1” 25 16 86 47.6 38 34 9.53
    87642-20-20 1.1/4” 32 20 100 54 44 40 10.29
    87642-24-20 1.1/2” 32 20 105.8 63.5 51 45.1 12.57
    87642-24-24 1.1/2” 40 24 112 63.5 51 46 12.57
    87642-32-24 2” 40 24 125.4 79.4 67 54.7 12.57
    87642-32-32 2” 50 32 143 79.4 67 49 12.57
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87642-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87642-XX-XX.
  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH    A       C       D    L
    87611-08-08RW 87612-08-08RW 1/2” 12 08 48.5 31.7 24 7.75
    87611-12-08RW 87612-12-08RW 3/4” 12 08 51.5 41.3 32 8.76
    87611-12-10RW 87612-12-10RW 3/4” 16 10 52 41.3 32 8.76
    87611-12-12RW 87612-12-12RW 3/4” 20 12 51 41.3 32 8.76
    87611-12-16RW 87612-12-16RW 3/4” 25 16 54.2 41.3 32 8.76
    87611-16-12RW 87612-16-12RW 1” 20 12 56 47.6 38 9.53
    87611-16-16RW 87612-16-16RW 1” 25 16 59.2 47.6 38 9.53
    87611-16-20RW 87612-16-20RW 1” 32 20 59.2 47.6 38 9.53
    87611-20-16RW 87612-20-16RW 1.1/4” 25 16 67.2 54 44 10.29
    87611-20-20RW 87612-20-20RW 1.1/4” 32 20 67.2 54 44 10.29
    87611-24-20RW 87612-24-20RW 1.1/2” 32 20 76.2 63.5 51 12.57
    87611-24-24RW 87612-24-24RW 1.1/2” 40 24 77 63.5 51 12.57
    87611-32-24RW 87612-32-24RW 2” 40 24 88 79.4 67 12.57
    87611-32-32RW 87612-32-32RW 2” 50 32 91.5 79.4 67 12.57

  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A C D L
    87311-08-08RW 87311-08-08RW 1/2” 12 08 47.5 30.2 24 6.73
    87311-12-08RW 87311-12-08RW 3/4” 12 08 48.5 38.1 31.7 6.73
    87311-12-10RW 87311-12-10RW 3/4” 16 10 49 38.1 31.7 6.73
    87311-12-12RW 87311-12-12RW 3/4” 20 12 48 38.1 31.7 6.73
    87311-12-16RW 87311-12-16RW 3/4” 25 16 51.2 38.1 31.7 6.73
    87311-16-12RW 87311-16-12RW 1” 20 12 51 44.4 38 8
    87311-16-16RW 87311-16-16RW 1” 25 16 54.2 44.4 38 8
    87311-16-20RW 87311-16-20RW 1” 32 20 54.2 44.4 38 8
    87311-20-16RW 87311-20-16RW 1.1/4” 25 16 59.2 50.8 43 8
    87311-20-20RW 87311-20-20RW 1.1/4” 32 20 59.2 50.8 43 8
    87311-24-20RW 87311-24-20RW 1.1/2” 32 20 69.2 60.3 50 8
    87311-24-24RW 87311-24-24RW 1.1/2” 40 24 70 60.3 50 8
    87311-32-24RW 87311-32-24RW 2” 40 24 72 71.4 62 9.53
    87311-32-32RW 87311-32-32RW 2” 50 32 75.5 71.4 62 9.53

  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A    C       D    H L
    87692-08-08 1/2” 12 08 42.5 31.7 24 25 7.75
    87692-12-10 3/4” 16 10 56 41.3 32 56.5 8.76
    87692-12-12 3/4” 20 12 50.5 41.3 32 65.5 8.76
    87692-16-12 1” 20 12 65.5 47.6 38 69 9.53
    87692-16-16 1” 25 16 66 47.6 38 78 9.53
    87692-16-20 1” 32 20 91.5 47.6 38 85.5 9.53
    87692-20-16 1.1/4” 25 16 76.7 54 44 78.5 10.29
    87692-20-20 1.1/4” 32 20 75 54 44 92 10.29
    87692-24-20 1.1/2” 32 20 91.5 63.5 51 94.5 12.57
    87692-24-24 1.1/2” 40 24 89 63.5 51 107 12.57
    87692-32-24 2” 40 24 109.4 79.4 67 116 12.57
    87692-32-32 2” 50 32 115.5 79.4 67 138.5 12.57
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87692-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87692-XX-XX.
  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A C D H L
    87341-08-08RW 87342-08-08RW 1/2” 12 08 59.7 30.2 24 23.3 6.73
    87341-12-08RW 87342-12-08RW 3/4” 12 08 60.4 38.1 31.7 24 6.73
    87341-12-10RW 87342-12-10RW 3/4” 16 10 70.6 38.1 31.7 25.3 6.73
    87341-12-12RW 87342-12-12RW 3/4” 20 12 73.9 38.1 31.7 28.1 6.73
    87341-12-16RW 87342-12-16RW 3/4” 25 16 86.1 38.1 31.7 29.7 6.73
    87341-16-12RW 87342-16-12RW 1” 20 12 73.9 44.4 38 28.1 8
    87341-16-16RW 87342-16-16RW 1” 25 16 86.1 44.4 38 29.7 8
    87341-16-20RW 87342-16-20RW 1” 32 20 95.7 44.4 38 33.8 8
    87341-20-16RW 87342-20-16RW 1.1/4” 25 16 86.1 50.8 43 29.7 8
    87341-20-20RW 87342-20-20RW 1.1/4” 32 20 95.7 50.8 43 33.8 8
    87341-24-20RW 87342-24-20RW 1.1/2” 32 20 97.1 60.3 50 35.2 8
    87341-24-24RW 87342-24-24RW 1.1/2” 40 24 111.8 60.3 50 39.1 8
    87341-32-24RW 87342-32-24RW 2” 40 24 111.8 71.4 62 39.1 9.53
    87341-32-32RW 87342-32-32RW 2” 50 32 136.1 71.4 62 46.3 9.53

  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A C D L
    97312-08-08 1/2” 12 08 45.5 30.2 24 6.73
    97312-12-08 3/4” 12 08 47.5 38.1 31.7 6.73
    97312-12-10 3/4” 16 10 49 38.1 31.7 6.73
    97312-12-12 3/4” 20 12 48.5 38.1 31.7 6.73
    97312-12-16 3/4” 25 16 49 38.1 31.7 6.73
    97312-16-12 1” 20 12 51 44.4 38 8
    97312-16-16 1” 25 16 48 44.4 38 8
    97312-16-20 1” 32 20 53 44.4 38 8
    97312-20-16 1.1/4” 25 16 57 50.8 43 8
    97312-20-20 1.1/4” 32 20 56 50.8 43 8
    97312-24-20 1.1/2” 32 20 68 60.3 50 8
    97312-24-24 1.1/2” 40 24 74 60.3 50 8
    97312-32-24 2” 40 24 70 71.4 62 9.53
    97312-32-32 2” 50 32 70 71.4 62 9.53
    97312-40-40 2.1/2” 64 40 76 84.1 74 9.53
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87312-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87312-XX-XX.
  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A    C       D    H    L
    87691-08-08RW 87692-08-08RW 1/2” 12 08 42.5 30.2 24 48 6.73
    87691-12-08RW 87692-12-08RW 3/4” 12 08 42.5 38.1 31.7 52 6.73
    87691-12-10RW 87692-12-10RW 3/4” 16 10 57 38.1 31.7 56.5 6.73
    87691-12-12RW 87692-12-12RW 3/4” 20 12 63.2 38.1 31.7 63 6.73
    87691-12-16RW 87692-12-16RW 3/4” 25 16 78.9 38.1 31.7 71.5 6.73
    87691-16-12RW 87692-16-12RW 1” 20 12 63.2 44.4 38 66 8
    87691-16-16RW 87692-16-16RW 1” 25 16 78.9 44.4 38 74.5 8
    87691-16-20RW 87692-16-20RW 1” 32 20 92.7 44.4 38 85.5 8
    87691-20-16RW 87692-20-16RW 1.1/4” 25 16 78.9 50.8 43 78.5 8
    87691-20-20RW 87692-20-20RW 1.1/4” 32 20 92.7 50.8 43 89.5 8
    87691-24-20RW 87692-24-20RW 1.1/2” 32 20 92.7 60.3 50 94.5 8
    87691-24-24RW 87692-24-24RW 1.1/2” 40 24 111.4 60.3 50 108 8
    87691-32-24RW 87692-32-24RW 2” 40 24 111.4 71.4 62 116 9.53
    87691-32-32RW 87692-32-32RW 2” 50 32 138.6 71.4 62 136.3 9.53

  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A    C       D    H    L
    87391-08-08RW 87392-08-08RW 1/2” 12 08 42.5 30.2 24 47 6.73
    87391-12-08RW 87392-12-08RW 3/4” 12 08 42.5 38.1 31.7 48 6.73
    87391-12-10RW 87392-12-10RW 3/4” 16 10 57 38.1 31.7 52.5 6.73
    87391-12-12RW 87392-12-12RW 3/4” 20 12 63.2 38.1 31.7 59 6.73
    87391-12-16RW 87392-12-16RW 3/4” 25 16 78.9 38.1 31.7 67.5 6.73
    87391-16-12RW 87392-16-12RW 1” 20 12 63.2 44.4 38 59 8
    87391-16-16RW 87392-16-16RW 1” 25 16 78.9 44.4 38 67.5 8
    87391-16-20RW 87392-16-20RW 1” 32 20 92.7 44.4 38 78.5 8
    87391-20-16RW 87392-20-16RW 1.1/4” 25 16 78.9 50.8 43 67.5 8
    87391-20-20RW 87392-20-20RW 1.1/4” 32 20 92.7 50.8 43 78.5 8
    87391-24-20RW 87392-24-20RW 1.1/2” 32 20 92.7 60.3 50 80.5 8
    87391-24-24RW 87392-24-24RW 1.1/2” 40 24 111.4 60.3 50 94 8
    87391-32-24RW 87392-32-24RW 2” 40 24 111.4 71.4 62 94 9.53
    87391-32-32RW 87392-32-32RW 2” 50 32 138.6 71.4 62 114.3 9.53

  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A    C       D       H       L
    87342-08-08 1/2” 12 08 56.5 30.2 24 23.5 6.73
    87342-12-08 3/4” 12 08 58.9 38.1 31.7 24 6.73
    87342-12-10 3/4” 16 10 69.9 38.1 31.7 25.3 6.73
    87342-12-12 3/4” 20 12 73.5 38.1 31.7 29.5 6.73
    87342-16-12 1” 20 12 76.3 44.4 38 28.9 8
    87342-16-16 1” 25 16 83 44.4 38 31 8
    87342-16-20 1” 32 20 94.5 44.4 38 33.8 8
    87342-20-16 1.1/4” 25 16 82 50.8 43 30.5 8
    87342-20-20 1.1/4” 32 20 95 50.8 43 36 8
    87342-24-20 1.1/2” 32 20 95.9 60.3 50 35.2 8
    87342-24-24 1.1/2” 40 24 108 60.3 50 42 8
    87342-32-24 2” 40 24 109.9 71.4 62 39.1 9.53
    87342-32-32 2” 50 32 129.3 71.4 62 43 9.53
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87342-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87342-XX-XX.
  • 代  号 螺纹E 软     管 管子外径 O形圈 尺寸
    公称内径 标      号    A        C    H   S2
    20591-14-04 M16X1.5 6 04 6 O04.5X1.5 27.5 1.5 45.4 19
    20591-16-04 M16X1.5 6 04 8 O06.5X1.5 27.5 1.5 45.5 22
    20591-16-05 M16X1.5 8 05 8 O06.5X1.5 31 1.5 50 22
    20591-18-05T M18X1.5 8 05 10 O08.0X1.5 31 1.5 43.5 22
    20591-18-06 M18X1.5 10 06 10 O08.0X1.5 33 2 53 24
    20591-20-06T M20X1.5 10 06 12 O10.0X1.5 33 2.5 46.5 24
    20591-20-08 M20X1.5 12 08 12 O10.0X1.5 42.5 2.5 61.5 27
    20591-22-06T M22X1.5 10 06 14 O11.0X2.0 33 3 47 27
    20591-22-08 M22X1.5 12 08 14 O11.0X2.0 42.5 2.5 62.5 27
    20591-24-08T M24X1.5 12 08 16 O13.0X2.0 42.5 3 55 30
    20591-24-10 M24X1.5 16 10 16 O13.0X2.0 48.5 2.5 68 30
    20591-30-10T M30X2 16 10 20 O16.3X2.4 48.5 2.5 60.5 36
    20591-30-12 M30X2 20 12 20 O16.3X2.4 50.5 3 78.5 36
    20591-36-12T M36X2 20 12 25 O20.3X2.4 50.5 3.2 72 46
    20591-36-14T M36X2 22 14 25 O20.3X2.4 57.5 3.2 74 46
    20591-42-16T M42X2 25 16 30 O25.3X2.4 66 3.9 83 50
    20591-52-20T M52X2 32 20 38 O33.3X2.4 75 4.5 95.5 60
    20591-52-24T M52X2 40 24 38 O33.3X2.4 93 4.5 107.5 60
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20592-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20592-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A   C    S1
    10311-12-04RW -- M12X1.25 6 04 22 10 14
    10311-14-04RW -- M14X1.5 6 04 23 11 14
    10311-16-04RW -- M16X1.5 6 04 23 11 17
    10311-16-05RW -- M16X1.5 8 05 23 11 17
    10311-16-06RW -- M16X1.5 10 06 22.5 11 17
    10311-18-06RW -- M18X1.5 10 06 22.5 11 19
    10311-22-05RW -- M22X1.5 8 05 26 12 24
    10311-22-06RW -- M22X1.5 10 06 25.5 12 24
    10311-22-08RW 10312-22-08RW M22X1.5 12 08 26.5 12 24
    10311-27-10RW 10312-27-10RW M27X1.5 16 10 30 13 30
    10311-30-12RW 10312-30-12RW M30X1.5 20 12 31 14 32
    10311-36-12RW 10312-36-12RW M36X2 20 12 33 16 38
    10311-36-16RW 10312-36-16RW M36X2 25 16 36.2 16 38
    10311-39-16RW 10312-39-16RW M39X2 25 16 38.2 16 41
    10311-45-20RW 10312-45-20RW M45X2 32 20 42.2 20 46
    10311-52-24RW 10312-52-24RW M52X2 40 24 47 22 55
    10311-64-32RW 10312-64-32RW M64X2 50 32 57.5 27 65

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C   H  S2
    20591C-16-04TRW -- M16X1.5 6 04 8 31.5 3 37.5 19
    20591C-18-04TRW -- M18X1.5 6 04 10 31.5 3 39 22
    20591C-20-05TRW -- M20X1.5 8 05 12 34.5 4.5 42.5 24
    20591C-20-06TRW -- M20X1.5 10 06 12 36.3 4.5 44.8 24
    20591C-22-06TRW -- M22X1.5 10 06 14 36.3 4.5 44.8 27
    20591C-24-08TRW 20592C-24-08TRW M24X1.5 12 08 16 42.5 5 50.5 30
    20591C-30-10TRW 20592C-30-10TRW M30X1.5 16 10 20 57 7 57 36
    20591C-36-12TRW 20592C-36-12TRW M36X2 20 12 25 63.2 6.5 64 41
    20591C-42-16TRW 20592C-42-16TRW M42X2 25 16 30 78.9 9 74 50
    20591C-52-20TRW 20592C-52-20TRW M22X2 32 20 38 92.7 8 88 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A   C   H  S2
    20791-10-04RW -- M10X1 6 04 31.5 7.5 33.5 14
    20791-12-04RW -- M12X1.5 6 04 31.5 10 33.5 17
    20791-14-04TRW -- M14X1.5 6 04 31.5 8.5 32 19
    20791-14-05RW -- M14X1.5 8 05 34.5 8.5 37 19
    20791-14-06RW -- M14X1.5 10 06 36.3 8.5 39.3 19
    20791-16-04TRW -- M16X1.5 6 04 31.5 8 32.5 22
    20791-16-05TRW -- M16X1.5 8 05 34.5 8 35.5 22
    20791-16-06RW -- M16X1.5 10 06 36.3 8 40.3 22
    20791-18-05TRW -- M18X1.5 8 05 34.5 8 36.5 22
    20791-18-06RW -- M18X1.5 10 06 36.3 10 41.3 24
    20791-20-06TRW -- M20X1.5 10 06 36.3 10 39.3 24
    20791-20-08RW 20792-20-08RW M20X1.5 12 08 42.5 10 48 27
    20791-22-08TRW 20792-22-08TRW M22X1.5 12 08 42.5 10 44.5 27
    20791-22-10RW 20792-22-10RW M22X1.5 16 10 57 10 52.5 27
    20791-24-08TRW 20792-24-08TRW M24X1.5 12 08 42.5 11 44.5 30
    20791-27-08TRW 20792-27-08TRW M27X1.5 12 08 42.5 11 46.5 32
    20791-27-10TRW 20792-27-10TRW M27X1.5 16 10 57 11 51 32
    20791-30-10TRW 20792-30-10TRW M30X1.5 16 10 57 11 51.5 36
    20791-30-12TRW 20792-30-12TRW M30X1.5 20 12 63.2 13 58 36
    20791-33-12TRW 20792-33-12TRW M33X2 20 12 63.2 13 57.5 41
    20791-36-16TRW 20792-36-16TRW M36X2 25 16 78.9 14 66 41
    20791-39-16TRW 20792-39-16TRW M39X2 25 16 78.9 14 69 46
    20791-42-16TRW 20792-42-16TRW M42X2 25 16 78.9 15 68 50
    20791-42-20WRW 20792-42-20WRW M42X2 32 20 92.7 15 85.5 50
    20791-45-20TRW 20792-45-20TRW M45X2 32 20 92.7 15 79 55
    20791-52-24TRW 20792-52-24TRW M52X2 40 24 111.4 17 92.5 60

  •
    代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 O形圈 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. O RING A   C   H  S2
    20541-14-04TRW -- M14X1.5 6 04 6 O04.5X1.5 44.1 1.1 20.5 17
    20541-16-04TRW -- M16X1.5 6 04 8 O06.5X1.5 44.5 1.5 20.9 19
    20541-16-05TRW -- M16X1.5 8 05 8 O06.5X1.5 46.6 1.5 21.8 19
    20541-18-04TRW -- M18X1.5 6 04 10 O08.0X1.5 45.6 1.5 22 22
    20541-18-06TRW -- M18X1.5 10 06 10 O08.0X1.5 48.8 1.5 23.6 22
    20541-20-06TRW -- M20X1.5 10 06 12 O10.0X1.5 49.1 2.5 23.9 24
    20541-20-08WRW 20542-20-08WRW M20X1.5 12 08 12 O10.0X1.5 65 2.5 28.6 24
    20541-22-06TRW -- M22X1.5 10 06 14 O11.0X2.0 49.1 2.5 23.9 27
    20541-22-08TRW 20542-22-08TRW M22X1.5 12 08 14 O11.0X2.0 31.8 2.5 25.4 27
    20541-24-06TRW -- M24X1.5 10 06 16 O13.0X2.0 49.1 3 23.9 30
    20541-24-08TRW 20542-24-08TRW M24X1.5 12 08 16 O13.0X2.0 61.8 3 25.4 30
    20541-30-10TRW 20542-30-10TRW M30X2 16 10 20 O16.3X2.4 74.8 2.5 29.5 36
    20541-30-12TRW 20542-30-12TRW M30X2 20 12 20 O16.3X2.4 78.1 2.5 32.3 36
    20541-36-12TRW 20542-36-12TRW M36X2 20 12 25 O20.3X2.4 78.4 3 32.6 46
    20541-42-12TRW 20542-42-12TRW M42X2 20 12 30 O25.3X2.4 79.6 4 33.8 50
    20541-42-16TRW 20542-42-16TRW M42X2 25 16 30 O25.3X2.4 91.8 4 34.5 50
    20541-52-20TRW 20542-52-20TRW M52X2 32 20 38 O33.3X2.4 101.7 4.5 39.8 60
    20541-52-24TRW 20542-52-24TRW M52X2 40 24 38 O33.3X2.4 116.4 4.5 43.7 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A   C    H  S2
    20191-10-04RW -- M10X1 6 04 31.5 2.5 37 14
    20191-12-04RW -- M12X1.5 6 04 31.5 4 37.5 17
    20191-12-05RW -- M12X1.5 8 05 34.5 4 40.5 17
    20191-14-04TRW -- M14X1.5 6 04 31.5 4 36 19
    20191-14-05RW -- M14X1.5 8 05 34.5 4.5 41 19
    20191-16-04TRW -- M16X1.5 6 04 31.5 5 36 22
    20191-16-05TRW -- M16X1.5 8 05 34.5 5 39 22
    20191-16-06RW -- M16X1.5 10 06 36.3 4.5 43.8 22
    20191-18-05TRW -- M18X1.5 8 05 34.5 4 41 22
    20191-18-06TRW -- M18X1.5 10 06 36.3 4 43.3 22
    20191-18-08RW 20192-18-08RW M18X1.5 12 08 42.5 4 51.5 24
    20191-20-06TRW -- M20X1.5 10 06 36.3 5.5 43.8 24
    20191-20-08RW 20192-20-08RW M20X1.5 12 08 42.5 5.5 52 27
    20191-22-06TRW 20192-22-06TRW M22X1.5 10 06 36.3 5 44.3 27
    20191-22-08TRW 20192-22-08TRW M22X1.5 12 08 42.5 5 49.5 27
    20191-22-10RW 20192-22-10RW M22X1.5 16 10 57 5 57.5 27
    20191-24-10RW 20192-24-10RW M24X1.5 16 10 57 5 58.5 30
    20191-24-08TRW 20192-24-08TRW M24X1.5 12 08 42.5 5.5 50 30
    20191-27-08DTRW 20192-27-08DTRW M27X1.5 12 08 42.5 5.5 51 32
    20191-27-10DTRW 20192-27-10DTRW M27X1.5 16 10 57 5.5 55.5 32
    20191-27-12DRW 20192-27-12DRW M27X1.5 20 12 63.2 5.5 66 32
    20191-27-10TRW 20192-27-10TRW M27X2 16 10 57 7 55.5 32
    20191-30-12DTRW 20192-30-12DTRW M30X1.5 20 12 63.2 6 62.5 36
    20191-30-12TRW 20192-30-12TRW M30X2 20 12 63.2 7 62.5 41
    20191-36-12TRW 20192-36-12TRW M36X2 20 12 63.2 8 63.5 41
    20191-39-16TRW 20192-39-16TRW M39X2 25 16 78.9 7 74 46
    20191-42-16TRW 20192-42-16TRW M42X2 25 16 78.9 8.5 74 50
    20191-45-20TRW 20192-45-20TRW M45X2 32 20 92.7 8.5 85.5 55
    20191-52-20TRW 20192-52-20TRW M52X2 32 20 92.7 9 87 60
    20191-52-24TRW 20192-52-24TRW M52X2 40 24 111.4 9 100.5 60
    20191-64-32TRW 20192-64-32TRW M64X2 50 32 138.6 14 122.8 75

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A    C    H   S2
    20291-14-04TRW -- M14X1.5 6 04 32 8 32 19
    20291-14-05RW -- M14X1.5 8 05 34.5 10 37 19
    20291-16-05TRW -- M16X1.5 8 05 35.5 9 35 22
    20291-16-04TRW -- M16X1.5 6 04 31.5 9 32 22
    20291-16-06RW -- M16X1.5 10 06 36.3 8 40.3 22
    20291-18-06TRW -- M18X1.5 10 06 37.3 10.5 37.8 24
    20291-18-04TRW -- M18X1.5 6 04 31.5 10.5 32.5 24
    20291-18-05TRW -- M18X1.5 8 05 33.5 10.5 35.5 24
    20291-20-06TRW -- M20X1.5 10 06 36.3 10 39.3 24
    20291-20-08RW 20292-20-08RW M20X1.5 12 08 41.5 10 48 27
    20291-22-06TRW -- M22X1.5 10 06 36.3 10 9.3 27
    20291-22-08TRW 20292-22-08TRW M22X1.5 12 08 41.5 10 44.5 27
    20291-22-10RW 20292-22-10RW M22X1.5 16 10 57.5 10 52.5 27
    20291-24-08TRW 20292-24-08TRW M24X1.5 12 08 41.5 11 44.5 30
    20291-24-10RW 20292-24-10RW M24X1.5 16 10 57.5 10.5 53 30
    20291-27-10TRW 20292-27-10TRW M27X1.5 16 10 57.5 10 50.3 32
    20291-27-08TRW 20292-27-08TRW M27X1.5 12 08 41.5 10 45.8 32
    20291-27-12RW 20292-27-12RW M27X1.5 20 12 62.5 10 60.5 32
    20291-30-12TRW 20292-30-12TRW M30X1.5 20 12 62.5 10.5 58 36
    20291-30-10TRW 20292-30-10TRW M30X1.5 16 10 57.5 10.5 51.5 36
    20291-33-16RW 20292-33-16RW M33X1.5 25 16 74.4 13.5 70 41
    20291-36-12TRW 20292-36-12TRW M36X2.0 20 12 62.5 13 59.5 41
    20291-36-16TRW 20292-36-16TRW M36X2.0 25 16 75.9 13 68 41
    20291-39-16TRW 20292-39-16TRW M39X2.0 25 10 79.2 13 53 46
    20291-42-16TRW 20292-42-16TRW M42X2.0 25 16 74.4 15 69 50
    20291-45-20TRW 20292-45-20TRW M45X2.0 32 20 92.7 15 79 55
    20291-52-24TRW 20292-52-24TRW M52X2.0 40 24 111.4 17 92.5 60
    20291-60-24TRW 20292-60-24TRW M60X2.0 40 24 111.4 19 92.5 70
    20291-64-32TRW 20292-64-32TRW M64X2.0 51 32 136.7 23 113.8 75

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C   H  S2
    20411C-12-04WRW -- M12X1.5 6 04 6 45.6 3.5 22 17
    20411C-14-04TRW -- M14X1.5 6 04 8 44.1 3.5 20.5 19
    20411C-16-04TRW -- M16X1.5 6 04 10 44.1 4 20.5 22
    20411C-16-05TRW -- M16X1.5 8 05 10 46.2 4 21.4 22
    20411C-16-06WRW -- M16X1.5 10 06 10 49.9 3.5 24.7 19
    20411C-18-06TRW -- M18X1.5 10 06 12 48.8 3 23.6 22
    20411C-22-06TRW -- M22X1.5 10 06 15 49.1 4.5 23.9 27
    20411C-22-08TRW 20412C-22-08TRW M22X1.5 12 08 15 61.8 4.5 25.4 27
    20411C-26-10TRW 20412C-26-10TRW M26X1.5 16 10 18 73.8 4 28.5 32
    20411C-30-10TRW 20412C-30-10TRW M30X2 16 10 22 73.8 7 28.5 36
    20411C-30-12TRW 20412C-30-12TRW M30X2 20 12 22 77.1 7 31.3 36
    20411C-36-16TRW 20412C-36-16TRW M36X2 25 16 28 89.6 6.5 33.2 41
    20411C-45-20TRW 20412C-45-20TRW M45X2 32 20 35 101.7 7 39.8 50
    20411C-52-24TRW 20412C-52-24TRW M52X2 40 24 42 117.1 8 44.4 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C    S2
    20511C-16-04TRW -- M16X1.5 6 04 8 20 3 19
    20511C-18-04TRW -- M18X1.5 6 04 10 21.5 3 22
    20511C-20-05TRW -- M20X1.5 8 05 12 22 4.5 24
    20511C-20-06TRW -- M20X1.5 10 06 12 21.5 4.5 24
    20511C-22-06TRW -- M22X1.5 10 06 14 21.5 4.5 27
    20511C-24-08TRW 20512C-24-08TRW M24X1.5 12 08 16 22 5 30
    20511C-30-10TRW 20512C-30-10TRW M30X1.5 16 10 20 25.5 7 36
    20511C-36-12TRW 20512C-36-12TRW M36X2 20 12 25 25 6.5 41
    20511C-42-16TRW 20512C-42-16TRW M42X2 25 16 30 29.7 9 50
    20511C-52-20TRW 20512C-52-20TRW M52X2 32 20 38 32.7 8 60

  • 代  号 螺纹E 软     管 尺     寸
    公称内径 标      号 A     C         H        S2
    20291-12-02 M12X1.25 4 02 26.5 8 30.5 17
    20291-12-04 M12X1.25 6 04 30 8 33.5 17
    20291-14-04 M14X1.5 6 04 27.5 8.5 34 19
    20291-14-05 M14X1.5 8 05 33 8.5 37 19
    20291-16-04 M16X1.5 6 04 30 8 35 22
    20291-16-05 M16X1.5 8 05 31 8 39.5 22
    20291-16-06 M16X1.5 10 06 35.3 8 40.3 22
    20291-18-05T M18X1.5 8 05 33 8 39 24
    20291-18-06 M18X1.5 10 06 33 8 42 24
    20291-22-08 M22X1.5 12 08 42.5 10 49.5 27
    20291-22-10 M22X1.5 16 10 57.5 10 53 27
    20291-24-08T M24X1.5 12 08 41 11 45.5 30
    20291-27-04T M27X1.5 6 04 30 10 35.5 32
    20291-27-08T M27X1.5 12 08 41 10 46 32
    20291-27-10T M27X1.5 16 10 48.5 10 51.5 32
    20291-30-12 M30X1.5 20 12 50.5 11 63.5 36
    20291-33-14 M33X2 22 14 71.2 13 65 41
    20291-36-14T M36X2 22 14 57.5 13 64 41
    20291-36-16 M36X2 25 16 66 13 76.5 41
    20291-39-16T M39X2 25 16 66 13 72.5 46
    20291-42-20W M42X2 32 20 91.5 15 80.5 50
    20291-45-20T M45X2 32 20 75 15 85 55
    20291-52-20T M52X2 32 20 91.5 17 78.5 60
    20291-52-24T M52X2 40 24 89 17 97 60
    20291-60-28T M60X2 45 28 119.9 20 106.5 70
    20291-64-32T M64X2 50 32 130.95 23 113.3 75
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20292-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20292-XX-XX.
  • 代  号 螺纹E 软     管 管子外径 O形圈 尺寸
    公称内径 标      号    A        C    H   S2
    20491-12-03 M12X1.5 5 03 6 O04.5X1.5 25.6 1 34.5 17
    20491-12-04 M12X1.5 6 04 6 O04.5X1.5 27.5 1 43 17
    20491-14-04 M14X1.5 6 04 8 O06.5X1.5 27.5 2 44.5 19
    20491-16-04 M16X1.5 6 04 10 O08.0X1.5 27.5 2 45 22
    20491-16-05 M16X1.5 8 05 10 O08.0X1.5 31 2 49.5 22
    20491-16-06 M16X1.5 10 06 10 O08.0X1.5 33 2 50.5 22
    20491-18-05T M18X1.5 8 05 12 O10.0X1.5 31 1.5 43 22
    20491-18-06 M18X1.5 10 06 12 O10.0X1.5 33 2.5 52.5 24
    20491-22-06T M22X1.5 10 06 15 O12.0X2.0 33 3 47 27
    20491-22-08 M22X1.5 12 08 15 O12.0X2.0 42.5 2.5 62.5 27
    20491-26-08T M26X1.5 12 08 18 O15.0X2.0 42.5 2.1 54.5 32
    20491-26-10 M26X1.5 16 10 18 O15.0X2.0 48.5 2.5 68 32
    20491-26-12 M26X1.5 20 12 18 O15.0X2.0 50.5 2.5 76 32
    20491-30-10T M30X2 16 10 22 O20.0X2.0 48.5 3.8 59.5 36
    20491-30-12 M30X2 20 12 22 O20.0X2.0 50.5 4 78 36
    20491-36-12T M36X2 20 12 28 O26.0X2.0 50.5 4.5 71 46
    20491-36-14T M36X2 22 14 28 O26.0X2.0   4.5   46
    20491-45-16T M45X2 25 16 35 O32.0X2.5 66 4 83 55
    20491-45-20T M45X2 32 20 35 O32.0X2.5 75 4 95 55
    20491-52-20T M52X2 32 20 42 O38.0X2.5 75 4 96.5 60
    20491-52-24T M52X2 40 24 42 O38.0X2.5 89 4 108.5 60
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20492-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20492-XX-XX.
  • 代  号 PART NO. 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS 备注
    编织 BRAIDED 缠绕 SPIRAL 公称内径 DN 标号DASH TUBE O.D. A    C    H NOTE
    50091-06-04RW -- 6 04 6 31.5 22 48 轻 系 列
    50091-08-05RW -- 8 05 8 35.5 24 55.5
    50091-08-06RW -- 10 06 8 36.8 24 57.5
    50091-10-05RW -- 8 05 10 35.5 23 53
    50091-10-06RW -- 10 06 10 36.3 23 55.3
    50091-12-06RW -- 10 06 12 36.3 23 59.8
    50091-12-08RW 50092-12-08RW 12 008 12 41.5 23 67
    50091-15-06RW 50092-15-06RW 10 06 15 36.9 25 59.8
    50091-15-08RW 50092-15-08RW 12 08 15 41.5 25 65
    50091-18-08RW 50092-18-08RW 12 08 18 41.5 26 68.5
    50091-18-10RW 50092-18-10RW 16 10 18 58 26 73
    50091-22-10RW 50092-22-10RW 16 10 22 58 28 76.5
    50091-22-12RW 50092-22-12RW 20 12 22 65.5 28 86
    50091-22-16RW 50092-22-16RW 25 16 22 78.9 28 91.5
    50091-28-16RW 50092-28-16RW 25 16 28 78.9 30 95.5
    50091-35-20RW 50092-35-20RW 32 20 35 92.7 36 112.5
    50091-42-24RW 50092-42-24RW 40 24 42 111.5 40 123
    50091-08-04RW -- 6 04 8 31.5 24 52.5 重 系 列
    50091-08-05RW -- 8 05 8 35.5 24 55.5
    50091-08-06RW -- 10 06 8 36.8 24 57.8
    50091-10-04RW -- 6 04 10 31.5 26 53
    50091-12-04RW -- 6 04 12 31.5 26 57.5
    50091-12-05RW -- 8 05 12 34.5 26 60.5
    50091-14-06RW -- 10 06 14 36.3 29 63.8
    50091-14-08RW 50092-14-08RW 12 08 14 41.5 29 69
    50091-14-12RW 50092-14-12RW 20 12 14 66.2 29 83
    50091-16-08RW 50092-16-08RW 12 08 16 41.5 30 73
    50091-16-10RW 50092-16-10RW 16 10 16 58 30 77.5
    50091-20-10RW 50092-20-10RW 16 10 20 58 36 84.5
    50091-20-12RW 50092-20-12RW 20 12 20 65.5 36 95.5
    50091-25-12RW 50092-25-12RW 20 12 25 65.5 40 98
    50091-25-16RW 50092-25-16RW 25 16 25 78.9 40 103.5
    50091-30-16RW 50092-30-16RW 25 16 30 80.2 44 109.5
    50091-30-20RW 50092-30-20RW 32 20 30 92.7 44 120.5
    50091-38-16RW 50092-38-16RW 25 16 38 78.9 50 115.5
    50091-38-20RW 50092-38-20RW 32 20 38 92.7 50 126.5

  • 代  号 螺纹E 软     管 管子外径 尺寸
    公称内径 标      号 A   C    S2
    10411-12-04 M12X1.5 6 04 6 22 10 12
    10411-14-04 M14X1.5 6 04 8 22 10 14
    10411-14-05 M14X1.5 8 05 8 22 10 14
    10411-16-04 M16X1.5 6 04 10 23.5 11 17
    10411-16-05 M16X1.5 8 05 10 23.5 11 17
    10411-16-06 M16X1.5 10 06 10 23.5 11 17
    10411-18-05 M18X1.5 8 05 12 24 11 19
    10411-18-06 M18X1.5 10 06 12 24 11 19
    10411-22-06 M22X1.5 10 06 15 26.5 12 24
    10411-22-08 M22X1.5 12 08 15 27 12 24
    10411-26-08 M26X1.5 12 08 18 28.5 12 27
    10411-26-10 M26X1.5 16 10 18 29.5 12 27
    10411-27-10 M27X1.5 16 10 18 32.5 14 30
    10411-30-10 M30X2 16 10 22 33.5 14 32
    10411-30-12 M30X2 20 12 22 33.5 14 32
    10411-36-16 M36X2 25 16 28 36 14 38
    10411-45-20 M45X2 32 20 35 40 16 46
    10411-52-24 M52X2 40 24 42 43 16 55
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为10412-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 10412-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 O形圈 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. O RING A   C    S1
    20411-12-04WRW -- M12X1.5 6 04 6 O04.5X1.5 23.6 1.4 17
    20411-14-04TRW -- M14X1.5 6 04 8 O06.5X1.5 19.1 1.4 17
    20411-14-05WRW -- M14X1.5 10 06 8 O06.5X1.5 23.7 1.4 17
    20411-16-04TRW -- M16X1.5 6 04 10 O08.0X1.5 19.7 2.1 19
    20411-16-05TRW -- M16X1.5 8 05 10 O08.0X1.5 19.7 2.1 19
    20411-16-06WRW -- M16X1.5 10 06 10 O08.0X1.5 24.5 2.1 19
    20411-18-05TRW -- M18X1.5 8 05 12 O10.0X1.5 21.5 1.5 22
    20411-18-06TRW -- M18X1.5 10 06 12 O10.0X1.5 21 1.5 22
    20411-18-08WRW 20412-18-08WRW M18X1.5 12 08 12 O10.0X1.5 26.2 1.8 22
    20411-22-05TRW -- M22X1.5 8 05 15 O12.0X2.0 22 3 27
    20411-22-06TRW -- M22X1.5 10 06 15 O12.0X2.0 21.5 3 27
    20411-22-08TRW 20412-22-08TRW M22X1.5 12 08 15 O12.0X2.0 22.5 3 27
    20411-22-10WRW 20412-22-10WRW M22X1.5 16 10 15 O12.0X2.0 27.1 3 27
    20411-26-08TRW 20412-26-08TRW M26X1.5 12 08 18 O15.0X2.0 23.4 2.1 32
    20411-26-10TRW 20412-26-10TRW M26X1.5 16 10 18 O15.0X2.0 23.9 2.1 32
    20411-26-12WRW 20412-26-12WRW M26X1.5 20 12 18 O15.0X2.0 27.4 2.1 32
    20411-30-10TRW 20412-30-10TRW M30X2 16 10 22 O20.0X2.0 26.7 3.8 36
    20411-30-12TRW 20412-30-12TRW M30X2 20 12 22 O20.0X2.0 25.7 3.8 36
    20411-30-16WRW 20412-30-16WRW M30X2 25 16 22 O20.0X2.0 32.5 3.8 36
    20411-36-12TRW 20412-36-12TRW M36X2 20 12 28 O26.0X2.0 25 4.5 41
    20411-36-16TRW 20412-36-16TRW M36X2 25 16 28 O26.0X2.0 28.2 4.5 41
    20411-36-20WRW 20412-36-20WRW M36X2 32 20 28 O26.0X2.0 33.3 4.5 41
    20411-45-16TRW 20412-45-16TRW M45X2 25 16 35 O32.0X2.5 31.2 4 50
    20411-45-20TRW 20412-45-20TRW M45X2 32 20 35 O32.0X2.5 31.2 4 50
    20411-52-20TRW 20412-52-20TRW M52X2 32 20 42 O38.0X2.5 32.2 4 60
    20411-52-24TRW 20412-52-24TRW M52X2 40 24 42 O38.0X2.5 33 4 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C   H  S2
    20541C-16-04TRW -- M16X1.5 6 04 8 44.5 3 20.9 19
    20541C-18-04TRW -- M18X1.5 6 04 10 45.6 3 22 22
    20541C-20-05TRW -- M20X1.5 8 05 12 48 4.5 23.2 24
    20541C-20-06TRW -- M20X1.5 10 06 12 49.1 4.5 23.9 24
    20541C-22-06TRW -- M22X1.5 10 06 14 49.1 4.5 23.9 27
    20541C-24-08TRW 20542C-24-08TRW M24X1.5 12 08 16 62.2 5 25.8 30
    20541C-30-10TRW 20542C-30-10TRW M30X1.5 16 10 20 73.8 7 28.5 36
    20541C-36-12TRW 20542C-36-12TRW M36X2 20 12 25 77.4 6.5 31.6 41
    20541C-42-16TRW 20542C-42-16TRW M42X2 25 16 30 90.7 9 34.3 50
    20541C-52-20TRW 20542C-52-20TRW M22X2 32 20 38 102.4 8 40.5 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C    S1
    10511-14-04RW -- M14X1.5 6 04 6 24 12 14
    10511-16-04RW -- M16X1.5 6 04 8 26 12 17
    10511-16-05RW -- M16X1.5 8 04 8 26 12 17
    10511-16-06RW -- M16X1.5 10 06 8 25.5 12 17
    10511-18-05RW -- M18X1.5 8 05 10 26 12 19
    10511-18-06RW -- M18X1.5 10 06 10 25.5 12 19
    10511-20-05RW -- M20X1.5 8 05 12 28 12 22
    10511-20-06RW -- M20X1.5 10 06 12 27.5 12 22
    10511-22-08RW 10512-22-08RW M20X1.5 12 08 14 30.5 14 24
    10511-24-08RW 10512-24-08RW M24X1.5 12 08 16 30.5 14 27
    10511-30-10RW 10512-30-10RW M30X2 16 10 20 35 16 32
    10511-30-12RW 10512-30-12RW M30X2 20 12 20 34 16 32
    10511-36-12RW 10512-36-12RW M36X2 25 16 25 41.2 18 41
    10511-36-16RW 10512-36-16RW M36X2 25 16 25 41.2 18 41
    10511-42-16RW 10512-42-16RW M42X2 25 16 30 43.2 20 46
    10511-42-20RW 10512-42-20RW M42X2 32 20 30 43.2 20 46
    10511-52-20RW 10512-52-20RW M52X2 32 20 38 48.2 22 55

  • 代  号 螺纹E 软     管 尺     寸
    公称内径 标      号 A    C       H      S2
    20241-14-04 M14X1.5 6 04 38 8.5 19 19
    20241-14-05 M14X1.5 8 05 42.7 8.5 19.3 19
    20241-16-05 M16X1.5 8 05 42.3 8.5 20.7 22
    20241-18-06 M18X1.5 10 06 45.5 8 22 24
    20241-22-08 M22X1.5 12 08 57.5 10 24.5 27
    20241-27-10T M27X1.5 16 10 58 10 24.5 32
    20241-30-12T M30X1.5 20 12 74 11 30 36
    20241-36-12T M36X2 20 12 75 13 27.5 41
    20241-36-14T M36X2 22 14 77.3 13 27 41
    20241-36-16 M36X2 25 16 85.7 13 31.5 41
    20241-39-16T M39X2 25 16 82 13 30 46
    20241-42-20W M42X2 32 20 95.9 15 35.2 50
    20241-45-20T M45X2 32 20 94.5 15 35.5 55
    20241-52-20T M52X2 32 20 94.5 17 33.8 60
    20241-52-24T M52X2 40 24 105 17 38.5 60
    20241-60-28T M60X2 45 28 118.7 20 43.6 70
    20241-62-32T M64X2 50 32 127.8 23 45.6 75
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20242-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20242-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A   C   H  S2
    20741-10-04RW -- M10X1 6 04 41.7 7.5 18.1 14
    20741-12-04RW -- M12X1.5 6 04 41.7 10 18.1 17
    20741-14-04TRW -- M14X1.5 6 04 40.6 8.5 17 19
    20741-14-05RW -- M14X1.5 8 05 44.1 8.5 19.3 19
    20741-14-06RW -- M14X1.5 10 06 45.2 8.5 20 19
    20741-16-04TRW -- M16X1.5 6 04 41 8 17.4 22
    20741-16-05TRW -- M16X1.5 8 05 43.1 8 18.3 22
    20741-16-06RW -- M16X1.5 10 06 45.9 8 20.7 22
    20741-18-05TRW -- M18X1.5 8 05 43.8 8 19 22
    20741-18-06RW -- M18X1.5 10 06 46.6 10 21.4 24
    20741-20-06TRW -- M20X1.5 10 06 45.2 10 20 24
    20741-20-08RW 20742-20-08RW M20X1.5 12 08 60.4 10 24 27
    20741-22-08TRW 20742-22-08TRW M22X1.5 12 08 57.9 10 21.5 27
    20741-22-10RW 20742-22-10RW M22X1.5 16 10 70.6 10 25.3 27
    20741-24-08TRW 20742-24-08TRW M24X1.5 12 08 57.9 11 21.5 30
    20741-27-08TRW 20742-27-08TRW M27X1.5 12 08 59.3 11 22.9 32
    20741-27-10TRW 20742-27-10TRW M27X1.5 16 10 69.5 11 24.2 32
    20741-30-10TRW 20742-30-10TRW M30X1.5 16 10 69.9 11 24.6 36
    20741-30-12TRW 20742-30-12TRW M30X1.5 20 12 73.2 13 27.4 36
    20741-33-12TRW 20742-33-12TRW M33X2 20 12 72.8 13 27 41
    20741-36-16TRW 20742-36-16TRW M36X2 25 16 85 14 28.6 41
    20741-39-16TRW 20742-39-16TRW M39X2 25 16 87.2 14 30.8 46
    20741-42-16TRW 20742-42-16TRW M42X2 25 16 86.5 15 30.1 50
    20741-42-20WRW 20742-42-20WRW M42X2 32 20 97.8 15 38.7 50
    20741-45-20TRW 20742-45-20TRW M45X2 32 20 96.1 15 34.2 55
    20741-52-24TRW 20742-52-24TRW M52X2 40 24 110.8 17 38.1 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 组合垫 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN  标号DASH BONDED A   D      J      K    S1
    70011-10-04RW -- M10X1 6 04 ZHD-10 18.5 17 20 5 14
    70011-12-04RW -- M12X1.5 6 04 ZHD-12 22 20 22 8 17
    70011-12-05RW -- M12X1.5 8 05 ZHD-12 22 20 22 8 17
    70011-12-06RW -- M12X1.5 10 06 ZHD-12 21.5 20 22 8 17
    70011-14-04RW -- M14X1.5 6 04 ZHD-14 22.5 24 24 8 19
    70011-14-05RW -- M14X1.5 8 05 ZHD-14 22.5 24 24 8 19
    70011-14-06RW -- M14X1.5 10 06 ZHD-14 22 24 24 8 19
    70011-16-04RW -- M16X1.5 6 04 ZHD-16 22 28 26 8 22
    70011-16-05RW -- M16X1.5 8 05 ZHD-16 22 28 26 8 22
    70011-16-06RW -- M16X1.5 10 06 ZHD-16 21.5 28 26 8 22
    70011-18-04RW -- M18X1.5 6 04 ZHD-18 24.5 32 30 8 24
    70011-18-05RW -- M18X1.5 8 05 ZHD-18 25.5 32 30 8 24
    70011-18-06RW -- M18X1.5 10 06 ZHD-18 25 32 30 8 24
    70011-18-08RW 70012-18-08RW M18X1.5 12 08 ZHD-18 25 32 30 8 24
    70011-22-06RW -- M22X1.5 10 06 ZHD-22 29.1 39 36 10 27
    70011-22-08RW 70012-22-08RW M22X1.5 12 08 ZHD-22 29 39 36 10 27
    70011-22-10RW 70012-22-10RW M22X1.5 16 10 ZHD-22 29.5 39 36 10 27
    70011-26-12RW 70012-26-12RW M26X1.5 20 12 ZHD-26 32.5 46 41 11 32
    70011-30-16RW 70012-30-16RW M30X1.5 25 16 ZHD-30 39.2 54 47 11 36
    70011-30-20RW 70012-30-20RW M30X1.5 32 20 ZHD-30 41.2 54 47 11 36

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A   C     S2
    20141-10-04RW -- M10X1 6 04 44.1 2.5 20.5 14
    20141-12-04RW -- M12X1.5 6 04 44.5 4 20.9 17
    20141-12-05RW -- M12X1.5 8 05 46.6 4 21.8 17
    20141-14-04TRW -- M14X1.5 6 04 43.4 4 19.8 19
    20141-14-05RW -- M14X1.5 8 05 47 4.5 22.2 19
    20141-16-04TRW -- M16X1.5 6 04 43.4 5 19.8 22
    20141-16-05TRW -- M16X1.5 8 05 45.5 5 20.7 22
    20141-16-06RW -- M16X1.5 10 06 48.4 4.5 23.2 22
    20141-18-05TRW -- M18X1.5 8 05 47 4 22.2 22
    20141-18-06TRW -- M18X1.5 10 06 48.1 4 22.9 22
    20141-18-08RW 20142-18-08RW M18X1.5 12 08 62.9 4 26.5 24
    20141-20-06TRW -- M20X1.5 10 06 48.4 5.5 23.2 24
    20141-20-08RW 20142-20-08RW M20X1.5 12 08 63.2 5.5 26.8 27
    20141-22-06TRW 20142-22-06TRW M22X1.5 10 06 48.8 5 23.6 27
    20141-22-08TRW 20142-22-08TRW M22X1.5 12 08 61.5 5 25.1 27
    20141-22-10RW 20142-22-10RW M22X1.5 16 10 74.1 5 28.8 27
    20141-24-10RW 20142-24-10RW M24X1.5 16 10 74.8 5 29.5 30
    20141-24-08TRW 20142-24-08TRW M24X1.5 12 08 61.8 5.5 25.4 30
    20141-27-08DTRW 20142-27-08DTRW M27X1.5 12 08 62.5 5.5 26.1 32
    20141-27-10DTRW 20142-27-10DTRW M27X1.5 16 10 72.7 5.5 27.4 32
    20141-27-12DRW 20142-27-12DRW M27X1.5 20 12 78.8 5.5 33 32
    20141-27-10TRW 20142-27-10TRW M27X2 16 10 72.7 7 27.4 32
    20141-30-12DTRW 20142-30-12DTRW M30X1.5 20 12 76.4 6 30.6 36
    20141-30-12TRW 20142-30-12TRW M30X2 20 12 76.4 7 30.6 41
    20141-36-12TRW 20142-36-12TRW M36X2 20 12 77.1 8 31.3 41
    20141-39-16TRW 20142-39-16TRW M39X2 25 16 90.7 7 34.3 46
    20141-42-16TRW 20142-42-16TRW M42X2 25 16 90.7 8.5 34.3 50
    20141-45-20TRW 20142-45-20TRW M45X2 32 20 100.6 8.5 38.7 55
    20141-52-20TRW 20142-52-20TRW M52X2 32 20 101.7 9 39.8 60
    20141-52-24TRW 20142-52-24TRW M52X2 40 24 116.4 9 43.7 60
    20141-64-32TRW 20142-64-32TRW M64X2 50 32 142.1 14 52.3 75

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 O形圈 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. O RING A   C   H  S2
    20591-14-04TRW -- M14X1.5 6 04 6 O04.5X1.5 31.5 1.1 36.9 17
    20591-16-04TRW -- M16X1.5 6 04 8 O06.5X1.5 31.5 1.5 37.5 19
    20591-16-05TRW -- M16X1.5 8 05 8 O06.5X1.5 34.5 1.5 40.5 19
    20591-18-04TRW -- M18X1.5 6 04 10 O08.0X1.5 31.5 1.5 39 22
    20591-18-06TRW -- M18X1.5 10 06 10 O08.0X1.5 36.3 1.5 44.3 22
    20591-20-06TRW -- M20X1.5 10 06 12 O10.0X1.5 36.3 2.5 44.8 24
    20591-20-08WRW 20592-20-08WRW M20X1.5 12 08 12 O10.0X1.5 42.5 2.5 54.5 24
    20591-22-06TRW -- M22X1.5 10 06 14 O11.0X2.0 36.3 2.5 44.8 27
    20591-22-08TRW 20592-22-08TRW M22X1.5 12 08 14 O11.0X2.0 42.5 2.5 50 27
    20591-24-06TRW -- M24X1.5 10 06 16 O13.0X2.0 36.3 3 44.8 30
    20591-24-08TRW 20592-24-08TRW M24X1.5 12 08 16 O13.0X2.0 42.5 3 50 30
    20591-30-10TRW 20592-30-10TRW M30X2 16 10 20 O16.3X2.4 57 2.5 58.5 36
    20591-30-12TRW 20592-30-12TRW M30X2 20 12 20 O16.3X2.4 63.2 2.5 65 36
    20591-36-12TRW 20592-36-12TRW M36X2 20 12 25 O20.3X2.4 63.2 3 65.3 46
    20591-42-12TRW 20592-42-12TRW M42X2 20 12 30 O25.3X2.4 63.2 4 67.1 50
    20591-42-16TRW 20592-42-16TRW M42X2 25 16 30 O25.3X2.4 78.9 4 75.6 50
    20591-52-20TRW 20592-52-20TRW M52X2 32 20 38 O33.3X2.4 92.7 4.5 87 60
    20591-52-24TRW 20592-52-24TRW M52X2 40 24 38 O33.3X2.4 111.4 4.5 100.5 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C   H  S2
    20491C-12-04WRW -- M12X1.5 6 04 6 31.5 3.5 39 17
    20491C-14-04TRW -- M14X1.5 6 04 8 31.5 3.5 37 19
    20491C-16-04TRW -- M16X1.5 6 04 10 31.5 4 37 22
    20491C-16-05TRW -- M16X1.5 8 05 10 34.5 4 40 22
    20491C-16-06WRW -- M16X1.5 10 06 10 36.3 3.5 45.9 19
    20491C-18-06TRW -- M18X1.5 10 06 12 36.3 3 44.3 22
    20491C-22-06TRW -- M22X1.5 10 06 15 36.3 4.5 44.8 27
    20491C-22-08TRW 20492C-22-08TRW M22X1.5 12 08 15 42.5 4.5 50 27
    20491C-26-10TRW 20492C-26-10TRW M26X1.5 16 10 18 57 4 57 32
    20491C-30-10TRW 20492C-30-10TRW M30X2 16 10 22 57 7 57 36
    20491C-30-12TRW 20492C-30-12TRW M30X2 20 12 22 63.2 7 63.5 36
    20491C-36-16TRW 20492C-36-16TRW M36X2 25 16 28 78.9 6.5 72.5 41
    20491C-45-20TRW 20492C-45-20TRW M45X2 32 20 35 92.7 7 87 55
    20491C-52-24TRW 20492C-52-24TRW M52X2 40 24 42 111.4 8 101.5 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C   H    S2
    22611D-04-04SMRW -- G1/4”X19 6 04 23 5.5 12 19
    22611D-06-06SMRW -- G3/8”X19 10 06 23.7 6.3 17 22
    22611D-08-08SMRW 22612D-08-08SMRW G1/2”X14 12 08 28.5 7.5 22 27
    22611D-10-10SMRW 22612D-10-10SMRW G5/8”X14 10 06 28 9.5 22 30
    22611D-12-12SMRW 22612D-12-12SMRW G3/4”X14 20 12 31.1 10.9 27 32
    22611D-16-16SMRW 22612D-16-16SMRW G1”X11 25 16 36.5 11.7 32 41
    22611D-20-20SMRW 22612D-20-20SMRW G1.1/4”X11 32 20 42.7 11 41 50
    22611D-24-24SMRW 22612D-24-24SMRW G1.1/2”X11 40 24 43 13 46 55
    22611D-32-32SMRW 22612D-32-32SMRW G2”X11 50 32 49 16 55 70

  • 代  号 螺纹E 软     管 管子外径 O形圈 尺寸
    公称内径 标      号 A    C       H      S2
    20441-12-04 M14X1.5 6 04 8 O06.5X1.5 45 2 26 19
    20441-16-05 M16X1.5 8 05 10 O08.5X1.5 49.5 2 27.8 22
    20441-16-06 M16X1.5 10 06 10 O08.5X1.5 51.3 2 27.8 22
    20441-18-05T M18X1.5 8 05 12 O10.0X1.5 44.7 1.5 23.2 22
    20441-18-06 M18X1.5 10 06 12 O10.0X1.5 53 2.5 29 24
    20441-22-05T M22X1.5 8 05 15 O12.0X2   3   27
    20441-22-06T M22X1.5 10 06 15 O12.0X2 49 3 25.3 27
    20441-22-08 M22X1.5 12 08 15 O12.0X2 66.5 2.5 34 27
    20441-26-08T M26X1.5 12 08 18 O15.0X2 61 2.1 28 32
    20441-26-10 M26X1.5 16 10 18 O15.0X2 70 2.5 36 32
    20441-26-12 M26X1.5 20 12 18 O15.0X2   2.5   32
    20441-30-10T M30X1.5 16 10 22 O20.0X2 64 3.8 30 36
    20441-30-12 M30X1.5 20 12 22 O20.0X2 84.5 4 40.5 36
    20441-36-12T M36X1.5 20 12 28 O28.0X2 79.3 4.5 35.5 46
    20441-36-14T M36X2 22 14 28 O28.0X2   4.5   46
    20441-45-20T M45X2 32 20 35 O35.0X2 101.8 4 42.4 55
    20441-52-20T M52X2 32 20 42 O42.0X2   4 46.6 60
    20441-52-24T M52X2 40 24 42 O42.0X2 113 4   60
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20441-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20441-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREAD E 公称内径 DN 标号DASH A C H  S1   S2
    28641-14-04RW -- M14X1.5 6 04 44.9 10.5 21.3 19 19
    28641-16-05RW -- M16X1.5 8 05 49.1 10 24.3 22 22
    28641-18-06RW -- M18X1.5 10 06 50.9 11.5 25.7 24 24
    28641-20-08RW 28642-20-08RW M20X1.5 12 08 63.9 12 27.5 27 27
    28641-22-08RW 28642-22-08RW M22X1.5 12 08 63.9 14 27.5 27 27
    28641-24-10RW 28642-24-10RW M24X1.5 16 10 75.9 15 30.6 32 32
    28641-30-12RW 28642-30-12RW M30X1.5 20 12 79.9 18.3 34.1 36 36
    28641-33-16RW 28642-33-16RW M33X1.5 25 16 92.1 21.3 35.7 41 41
    28641-36-20RW 28642-36-20RW M36X1.5 32 20 103.8 20 41.9 46 46
    28641-42-24WRW 28642-42-24WRW M42X1.5 40 24 122.4 18.8 49.7 55 55

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREAD E 公称内径 DN 标号DASH A C H  S1   S2
    28691-14-04RW -- M14X1.5 6 04 31.5 10.5 38 19 19
    28691-16-05RW -- M16X1.5 8 05 34.5 10 44 22 22
    28691-18-06RW -- M18X1.5 10 06 36.3 11.5 47.3 24 24
    28691-20-08RW 28692-20-08RW M20X1.5 12 08 42.5 12 53 27 27
    28691-22-08RW 28692-22-08RW M22X1.5 12 08 42.5 14 53 27 27
    28691-24-10RW 28692-24-10RW M24X1.5 16 10 57 15 60 32 32
    28691-30-12RW 28692-30-12RW M30X1.5 20 12 63.2 18.3 67.5 36 36
    28691-33-16RW 28692-33-16RW M33X1.5 25 16 78.9 21.3 76 41 41
    28691-36-20RW 28692-36-20RW M36X1.5 32 20 92.7 20 90 46 46
    28691-42-24WRW 28692-42-24WRW M42X1.5 40 24 111.4 18.8 109 55 55

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREAD E 公称内径 DN 标号DASH A C  S2
    18611-14-04RW -- M14X1.5 6 04 29 17 17
    18611-14-06RW -- M14X1.5 10 06 28.5 17 17
    18611-16-04RW -- M16X1.5 6 04 30 18 17
    18611-16-06RW -- M16X1.5 10 06 29.5 18 17
    18611-18-06RW -- M18X1.5 10 06 29.5 18 19
    18611-20-08RW 18612-20-08RW M20X1.5 12 08 34.5 20 22
    18611-22-08RW 18612-22-08RW M22X1.5 12 08 34.5 20 24
    18611-24-10RW 18612-24-10RW M24X1.5 16 10 38.5 21.5 27
    18611-32-12RW 18612-32-12RW M30X1.5 20 12 43 26 32
    18611-33-16RW 18612-33-16RW M33X1.5 25 16 50.2 30 36
    18611-36-20RW 18612-36-20RW M36X1.5 32 20 53.2 33 38
    18611-42-24RW 18612-42-24RW M42X1.5 40 24 59 36 46

  • 代  号 螺  纹E 软     管 尺     寸
    公称内径 标      号 A   C     S2
    20711-10-02 M10X1 4 02 14 7.5 14
    20711-12-03C M12X1.25 5 03 14 9 17
    20711-12-03 M12X1.5 5 03 14 10 17
    20711-12-04 M12X1.5 6 04 15 10 17
    20711-14-04 M14X1.5 6 04 16 8.5 19
    20711-14-05 M14X1.5 8 05 15.5 8.5 19
    20711-14-06 M14X1.5 10 06 15.5 8.5 19
    20711-16-04 M16X1.5 6 04 16.5 8 22
    20711-16-05 M16X1.5 8 05 17 8 22
    20711-16-06 M16X1.5 10 06 16 8 22
    20711-18-05T M18X1.5 8 05 16 8 22
    20711-18-06 M18X1.5 10 06 18.5 10 24
    20711-20-06T M20X1.5 10 06 16 10 24
    20711-20-08 M20X1.5 12 08 18.5 10 27
    20711-22-06T M22X1.5 10 06 16 10 27
    20711-22-08 M22X1.5 12 08 19.5 10 27
    20711-22-10 M22X1.5 16 10 19 10 27
    20711-24-08T M24X1.5 12 08 16.5 11 30
    20711-27-08T M27X1.5 12 08 18.5 11 32
    20711-27-10T M27X1.5 16 10 21 11 32
    20711-27-12 M27X1.5 20 12 21.5 11 32
    20711-30-10T M30X1.5 16 10 18 11 36
    20711-30-12 M30X1.5 20 12 22 11 36
    20711-33-10T M33X2 16 10 19.5 13 41
    20711-33-12T M33X2 20 12 20 13 41
    20711-33-14 M33X2 22 14 21.5 13 41
    20711-36-12T M36X2 20 12 20 14 41
    20711-36-14T M36X2 22 14 24 14 41
    20711-36-16 M36X2 25 16 23 14 41
    20711-39-16T M39X2 25 16 25 14 46
    20711-42-16T M42X2 25 16 23.5 15 50
    20711-42-20W M42X2 32 20 24.5 15 50
    20711-45-20T M45X2 32 20 27 15 55
    20711-52-24T M52X2 40 24 27 17 60
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20712-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20712-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 O形圈 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. O RING A   C    S1
    20511-14-04TRW -- M14X1.5 6 04 6 O04.5X1.5 19.4 1.1 17
    20511-16-04TRW -- M16X1.5 6 04 8 O06.5X1.5 20 1.5 19
    20511-16-05TRW -- M16X1.5 8 05 8 O06.5X1.5 20 1.5 19
    20511-18-04TRW -- M18X1.5 6 04 10 O08.0X1.5 21.5 1.5 22
    20511-18-06TRW -- M18X1.5 10 06 10 O08.0X1.5 21 1.5 22
    20511-20-06TRW   M20X1.5 10 06 12 O10.0X1.5 21.5 2.5 24
    20511-20-08WRW 20512-20-08WRW M20X1.5 12 08 12 O10.0X1.5 27 2.5 24
    20511-22-06TRW -- M22X1.5 10 06 14 O11.0X1.5 21.5 2.5 27
    20511-22-08TRW 20512-22-08TRW M22X1.5 12 08 14 O11.0X1.5 22.5 2.5 27
    20511-24-06TRW -- M24X1.5 10 06 16 O13.0X1.5 21.5 3 30
    20511-24-08TRW 20512-24-08TRW M24X1.5 12 08 16 O13.0X1.5 22.5 3 30
    20511-30-10TRW 20512-30-10TRW M30X2 16 10 20 O16.3X2.4 27 2.5 36
    20511-30-12TRW 20512-30-12TRW M30X2 20 12 20 O16.3X2.4 26 2.5 36
    20511-36-12TRW 20512-36-12TRW M36X2 20 12 25 O20.3X2.4 26.3 3 46
    20511-42-12TRW 20512-42-12TRW M42X2 20 12 30 O25.3X2.4 28.1 4 50
    20511-42-16TRW 20512-42-13TRW M42X2 25 16 30 O25.3X2.4 31.3 4 50
    20511-52-20TRW 20512-52-20TRW M52X2 32 20 38 O33.3X2.4 31.7 4.5 60
    20511-52-24TRW 20512-52-24TRW M52X2 40 24 38 O33.3X2.4 32.5 4.5 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C    S2
    20411C-12-04WRW -- M12X1.5 6 04 6 22 3.5 17
    20411C-14-04TRW -- M14X1.5 6 04 8 19.5 3.5 19
    20411C-16-04TRW -- M16X1.5 6 04 10 19.5 4 22
    20411C-16-05TRW -- M16X1.5 8 05 10 19.5 4 22
    20411C-16-06WRW -- M16X1.5 10 06 10 23.6 3.5 19
    20411C-18-06TRW -- M18X1.5 10 06 12 21 3 22
    20411C-22-06TRW -- M22X1.5 10 06 15 21.5 4.5 27
    20411C-22-08TRW 20412C-22-08TRW M22X1.5 12 08 15 22.5 4.5 27
    20411C-26-10TRW 20412C-26-10TRW M26X1.5 16 10 18 25.5 4 32
    20411C-30-10TRW 20412C-30-10TRW M30X2 16 10 22 25.5 7 36
    20411C-30-12TRW 20412C-30-12TRW M30X2 20 12 22 24.5 7 36
    20411C-36-16TRW 20412C-36-16TRW M36X2 25 16 28 28.2 6.5 41
    20411C-45-20TRW 20412C-45-20TRW M45X2 32 20 35 31.7 7 50
    20411C-52-24TRW 20412C-52-24TRW M52X2 40 24 42 33.5 8 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A    C       H      S2
    20241-14-04TRW -- M14X1.5 6 04 40.6 8 17 19
    20241-14-05RW -- M14X1.5 8 05 44.1 10 19.3 19
    20241-16-04TRW -- M16X1.5 6 04 40.6 9 17 22
    20241-16-05TRW -- M16X1.5 8 05 42.7 9 17.9 22
    20241-16-06RW -- M16X1.5 10 06 45.9 8 20.7 22
    20241-18-04TRW -- M18X1.5 6 04 41 10.5 17.4 24
    20241-18-05TRW -- M18X1.5 8 05 43.1 10.5 18.3 24
    20241-18-06TRW -- M18X1.5 10 06 44.2 10.5 19 24
    20241-20-06TRW -- M20X1.5 10 06 45.2 10 20 24
    20241-20-08RW 20242-20-08RW M20X1.5 12 08 60.4 10 24 27
    20241-22-06TRW -- M22X1.5 10 06 45.2 10 20 27
    20241-22-08TRW 20242-22-08TRW M22X1.5 12 08 57.9 10 21.5 27
    20241-22-10RW 20242-22-10RW M22X1.5 16 10 70.6 10 25.3 27
    20241-24-08TRW 20242-24-08TRW M24X1.5 12 08 57.9 11 21.5 30
    20241-24-10RW 20242-24-10RW M24X1.5 16 10 71 10.5 25.7 30
    20241-27-08TRW 20242-27-08TRW M27X1.5 12 08 58.8 10 22.4 32
    20241-27-10TRW 20242-27-10TRW M27X1.5 16 10 59 10 23.7 32
    20241-27-12RW 20242-27-12RW M27X1.5 20 12 75 10 29.2 32
    20241-30-10TRW 20242-30-10TRW M30X1.5 16 10 69.9 10.5 24.6 36
    20241-30-12TRW 20242-30-12TRW M30X1.5 20 12 73.2 10.5 27.4 36
    20241-33-16RW 20242-33-16RW M33X1.5 25 16 87.9 13.5 31.5 41
    20241-36-12TRW 20242-36-12TRW M36X2.0 20 12 74.3 13 28.5 41
    20241-36-16TRW 20242-36-16TRW M36X2.0 25 16 86.5 13 30.1 41
    20241-39-16TRW 20242-39-16TRW M39X2.0 25 16 86.5 13 30.1 46
    20241-42-16TRW 20242-42-16TRW M42X2.0 25 16 87.2 15 30.8 50
    20241-45-20TRW 20242-45-20TRW M45X2.0 32 20 96.1 15 34.2 55
    20241-52-24TRW 20242-52-24TRW M52X2.0 40 24 110.8 17 38.1 60
    20241-60-24TRW 20242-60-24TRW M60X2.0 40 24 110.8 19 38.1 70
    20241-64-32TRW 20242-64-32TRW M64X2.0 51 32 135.8 23 46 75

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A   C    S2
    20111-10-04RW -- M10X1 6 04 20 2.5 14
    20111-12-04RW -- M12X1.5 6 04 20.5 4 17
    20111-12-05RW -- M12X1.5 8 05 20.5 4 17
    20111-14-04TRW -- M14X1.5 6 04 18.5 4 19
    20111-14-05RW -- M14X1.5 8 05 21 4.5 19
    20111-16-04TRW -- M16X1.5 6 04 18.5 5 22
    20111-16-05TRW -- M16X1.5 8 05 18.5 5 22
    20111-16-06RW -- M16X1.5 10 06 21.5 4.5 22
    20111-18-05TRW -- M18X1.5 8 05 20.5 4 22
    20111-18-06TRW -- M18X1.5 10 06 20 4 22
    20111-18-08RW 20112-18-08RW M18X1.5 12 08 24 4 24
    20111-20-06TRW -- M20X1.5 10 06 20.5 5.5 24
    20111-20-08RW 20112-20-08RW M20X1.5 12 08 24.5 5.5 27
    20111-22-06TRW 20112-22-06TRW M22X1.5 10 06 21 5 27
    20111-22-08TRW 20112-22-08TRW M22X1.5 12 08 22 5 27
    20111-22-10RW 20112-22-10RW M22X1.5 16 10 26 5 27
    20111-24-10RW 20112-24-10RW M24X1.5 16 10 27 5 30
    20111-24-08TRW 20112-24-08TRW M24X1.5 12 08 22.5 5.5 30
    20111-27-08DTRW 20112-27-08DTRW M27X1.5 12 08 23.5 5.5 32
    20111-27-10DTRW 20112-27-10DTRW M27X1.5 16 10 24 5.5 32
    20111-27-12DRW 20112-27-12DRW M27X1.5 20 12 27.5 5.5 32
    20111-27-10TRW 20112-27-10TRW M27X2 16 10 24 7 32
    20111-30-12DTRW 20112-30-12DTRW M30X1.5 20 12 23.5 6 36
    20111-30-12TRW 20112-30-12TRW M30X2 20 12 23.5 7 41
    20111-36-12TRW 20112-36-12TRW M36X2 20 12 24.5 8 41
    20111-39-16TRW 20112-39-16TRW M39X2 25 16 29.7 7 46
    20111-42-16TRW 20112-42-16TRW M42X2 25 16 29.7 8.5 50
    20111-45-20TRW 20112-45-20TRW M45X2 32 20 30.2 8.5 55
    20111-52-20TRW 20112-52-20TRW M52X2 32 20 31.7 9 60
    20111-52-24TRW 20112-52-24TRW M52X2 40 24 32.5 9 60
    20111-64-32TRW 20112-64-32TRW M64X2 50 32 38 14 75

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A   C    S2
    20711-10-04RW -- M10X1 6 04 16.5 7.5 14
    20711-12-04RW -- M12X1.5 6 04 16.5 10 17
    20711-14-04TRW -- M14X1.5 6 04 14.5 8.5 19
    20711-14-05RW -- M14X1.5 8 05 17 8.5 19
    20711-14-06RW -- M14X1.5 10 06 17 8.5 19
    20711-16-04TRW -- M16X1.5 6 04 15 8 22
    20711-16-05TRW -- M16X1.5 8 05 15 8 22
    20711-16-06RW -- M16X1.5 10 06 18 8 22
    20711-18-05TRW -- M18X1.5 8 05 16 8 22
    20711-18-06RW -- M18X1.5 10 06 19 10 24
    20711-20-06TRW -- M20X1.5 10 06 16 10 24
    20711-20-08RW 20712-20-08RW M20X1.5 12 08 20.5 10 27
    20711-22-08TRW 20712-22-08TRW M22X1.5 12 08 17 10 27
    20711-22-10RW 20712-22-10RW M22X1.5 16 10 21 10 27
    20711-24-08TRW 20712-24-08TRW M24X1.5 12 08 17 11 30
    20711-27-08TRW 20712-27-08TRW M27X1.5 12 08 19 11 32
    20711-27-10TRW 20712-27-10TRW M27X1.5 16 10 19.5 11 32
    20711-30-10TRW 20712-30-10TRW M30X1.5 16 10 20 11 36
    20711-30-12TRW 20712-30-12TRW M30X1.5 20 12 19 13 36
    20711-33-12TRW 20712-33-12TRW M33X2 20 12 18.5 13 41
    20711-36-16TRW 20712-36-16TRW M36X2 25 16 21.7 14 41
    20711-39-16TRW 20712-39-16TRW M39X2 25 16 24.7 14 46
    20711-42-16TRW 20712-42-16TRW M42X2 25 16 23.7 15 50
    20711-42-20WRW 20712-42-20WRW M42X2 32 20 30.2 15 50
    20711-45-20TRW 20712-45-20TRW M45X2 32 20 23.7 15 55
    20711-52-24TRW 20712-52-24TRW M52X2 40 24 24.5 17 60

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S2
    20211-14-04TRW -- M14X1.5 6 04 14.5 8 19
    20211-14-05TRW -- M14X1.5 8 05 17 10 19
    20211-16-04TRW -- M16X1.5 6 04 14.5 9 22
    20211-16-05TRW -- M16X1.5 8 05 14.5 9 22
    20211-16-06RW -- M16X1.5 10 06 18 8 22
    20211-18-04TRW -- M18X1.5 6 04 15 10.5 24
    20211-18-05TRW -- M18X1.5 8 05 15 10.5 24
    20211-18-06TRW -- M18X1.5 10 06 14.5 10.5 24
    20211-20-06TRW -- M20X1.5 10 06 16 10 24
    20211-20-08RW 20212-20-08RW M20X1.5 12 08 20.5 10 27
    20211-22-06TRW -- M22X1.5 10 06 16 10 27
    20211-22-08TRW 20212-22-08TRW M22X1.5 12 08 17 10 27
    20211-22-10RW 20212-22-10RW M22X1.5 16 10 21 10 27
    20211-24-08TRW 20212-24-08TRW M24X1.5 12 08 17 11 30
    20211-24-10RW 20212-24-10RW M24X1.5 16 10 21.5 10.5 30
    20211-27-08TRW 20212-27-08TRW M27X1.5 12 08 18.3 10 32
    20211-27-10TRW 20212-27-10TRW M27X1.5 16 10 18.8 10 32
    20211-27-12RW 20212-27-12RW M27X1.5 20 12 22 10 32
    20211-30-10TRW 20212-30-10TRW M30X1.5 16 10 20 10.5 36
    20211-30-12TRW 20212-30-12TRW M30X1.5 20 12 19 10.5 36
    20211-36-12TRW 20212-36-12TRW M36X2.0 20 12 20.5 13 41
    20211-36-16TRW 20212-36-16TRW M36X2.0 25 16 23.7 13 41
    20211-39-16TRW 20212-39-16TRW M39X2.0 25 16 23.7 13 46
    20211-42-16TRW 20212-42-16TRW M42X2.0 25 16 24.7 15 50
    20211-45-20TRW 20212-45-20TRW M45X2.0 32 20 23.7 15 55
    20211-52-24TRW 20212-52-24TRW M52X2.0 40 24 24.5 17 60
    20211-60-24TRW 20212-60-24TRW M60X2.0 40 24 24.5 19 70
    20211-64-32TRW 20212-64-32TRW M64X2.0 51 32 29 23 75

  • 代  号 螺  纹E 软     管 尺     寸
    公称内径 标     号 A C S2
    20211-10-02 M10X1 4 02 14 6 14
    20211-12-03 M12X1.25 5 03 14 8 17
    20211-14-04 M14X1.5 6 04 16 8.5 19
    20211-14-05 M14X1.5 8 05 15.5 8.5 19
    20211-16-04 M16X1.5 6 04 16.5 8 22
    20211-16-05 M16X1.5 8 05 17 8 22
    20211-16-06 M16X1.5 10 06 16.5 8 22
    20211-18-05T M18X1.5 8 05 17.5 8 24
    20211-18-06 M20X1.5 10 06 18.5 8 24
    20211-20-06T M20X1.5 10 06 16 10 24
    20211-20-08 M20X1.5 12 08 18.5 10 27
    20211-22-06T M22X1.5 10 06 16 10 27
    20211-22-08 M22X1.5 12 08 19.5 10 27
    20211-22-10 M22X1.5 16 10 19.5 10 27
    20211-24-08T M24X1.5 12 08 16.5 11 30
    20211-24-10 M24X1.5 16 10 20.5 10.5 30
    20211-27-08T M27X1.5 12 08 18.5 10 32
    20211-27-10T M27X1.5 16 10 21 10 32
    20211-30-12 M30X1.5 20 12 22 11 36
    20211-33-14 M33X2 22 14 21.5 13 41
    20211-36-12T M36X2 20 12 24 13 41
    20211-36-14T M36X2 22 14 24 13 41
    20211-39-16T M39X2 25 16 25 13 46
    20211-42-20W M42X2 32 20 25 15 50
    20211-45-20T M45X2 32 20 27 15 55
    20211-52-24T M52X2 40 24 27 17 60
    20211-60-28T M60X2 45 28 26 20 70
    20211-64-32T M64X2 50 32 26 23 75
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20212-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20212-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 O形圈 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. O RING A   C   H  S2
    20491-12-04WRW -- M12X1.5 6 04 6 O04.5X1.5 31.5 1.4 40.6 17
    20491-14-04TRW -- M14X1.5 6 04 8 O06.5X1.5 31.5 1.4 36.6 17
    20491-14-06WRW -- M14X1.5 10 06 8 O06.5X1.5 36.3 1.4 46 17
    20491-16-04TRW -- M16X1.5 6 04 10 O08.0X1.5 31.5 0.8 37.2 19
    20491-16-05TRW -- M16X1.5 8 05 10 O08.0X1.5 34.5 0.8 40.2 19
    20491-16-06WRW -- M16X1.5 10 06 10 O08.0X1.5 36.3 2.1 46.8 19
    20491-18-05TRW -- M18X1.5 8 05 12 O10.0X1.5 34.5 1.5 42 22
    20491-18-06TRW -- M18X1.5 10 06 12 O10.0X1.5 36.3 1.5 44.3 22
    20491-18-08WRW 20492-18-08WRW M18X1.5 12 08 12 O10.0X1.5 42.5 1.8 53.7 22
    20491-22-05TRW -- M22X1.5 8 05 15 O12.0X2.0 34.5 3 42.5 27
    20491-22-06TRW -- M22X1.5 10 06 15 O12.0X2.0 36.3 3 44.8 27
    20491-22-08TRW 20492-22-08TRW M22X1.5 12 08 15 O12.0X2.0 42.5 3 50 27
    20491-22-10WRW 20492-22-10WRW M22X1.5 16 10 15 O12.0X2.0 57 3 58.6 27
    20491-26-08TRW 20492-26-08TRW M26X1.5 12 08 18 O15.0X2.0 42.5 2.1 50.9 32
    20491-26-10TRW 20492-26-10TRW M26X1.5 16 10 18 O15.0X2.0 57 2.1 55.4 32
    20491-26-12WRW 20492-26-12WRW M26X1.5 20 12 18 O15.0X2.0 63.2 2.1 65.9 32
    20491-30-10TRW 20492-30-10TRW M30X2 16 10 22 O20.0X2.0 57 3.8 58.2 36
    20491-30-12TRW 20492-30-12TRW M30X2 20 12 22 O20.0X2.0 63.2 3.8 64.7 36
    20491-30-16WRW 20492-30-16WRW M30X2 25 16 22 O20.0X2.0 78.9 3.8 77.3 36
    20491-36-12TRW 20492-36-12TRW M36X2 20 12 28 O26.0X2.0 63.2 4.5 64 41
    20491-36-16TRW 20492-36-16TRW M36X2 25 16 28 O26.0X2.0 78.9 4.5 72.5 41
    20491-36-20WRW 20492-36-20WRW M36X2 32 20 28 O26.0X2.0 92.7 4.5 88.6 41
    20491-45-16TRW 20492-45-16TRW M45X2 25 16 35 O32.0X2.5 78.9 4 75.5 50
    20491-45-20TRW 20492-45-20TRW M45X2 32 20 35 O32.0X2.5 92.7 4 86.5 50
    20491-52-20TRW 20492-52-20TRW M52X2 32 20 42 O38.0X2.5 92.7 4 87.5 60
    20491-52-24TRW 20492-52-24TRW M52X2 40 24 42 O38.0X2.5 111.4 4 101 60

  • 代  号 螺纹E 软     管 尺     寸
    公称内径 标      号 A    C       H      S2
    20791-12-04C M12X1.25 6 04 30 9 33.5 17
    20791-12-04 M12X1.5 6 04 30 10 33.5 17
    20791-14-04 M14X1.5 6 04 27.5 8.5 34 19
    20791-16-04 M16X1.5 6 04 30 8 35 22
    20791-16-05 M16X1.5 8 05 31 8 39.5 22
    20791-18-06 M18X1.5 10 06 33 10 42 24
    20791-22-08 M22X1.5 12 08 42.5 10 49.5 27
    20791-22-10 M22X1.5 16 10 56 10 52.5 27
    20791-27-10 M27X1.5 16 10 48.5 11 54.5 32
    20791-30-12 M30X1.5 20 12 50.5 11 63.5 36
    20791-33-12 M33X1.5 20 12 65.5 13 63.5 41
    20791-33-16 M33X1.5 25 16 66 13 75.5 41
    20791-36-12 M36X2 20 12 65.5 124 63.5 41
    20791-36-14 M36X2 22 14 71.2 14 64.5 41
    20791-39-16 M39X2 25 16 66 14 76.5 46
    20791-45-20W M45X2 32 20 91.5 15 83 55
    20791-52-21W M52X2 32 20 93 17 84.5 60
    20791-52-24W M52X1.5 40 24 110.7 17 96.5 60
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20792-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20792-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH TUBE O.D. A   C    S1
    10411-12-04RW -- M12X1.5 6 04 6 20 10 12
    10411-14-04RW -- M14X1.5 6 04 8 21 10 14
    10411-14-05RW -- M14X1.5 8 05 8 21 10 14
    10411-16-04RW -- M16X1.5 6 04 10 22 11 17
    10411-16-05RW -- M16X1.5 8 04 10 22 11 17
    10411-16-06RW -- M16X1.5 10 06 10 21.5 11 17
    10411-18-05RW -- M18X1.5 8 05 12 23 11 19
    10411-18-06RW -- M18X1.5 10 06 12 22.5 11 19
    10411-22-06RW -- M22X1.5 10 06 15 23.5 12 24
    10411-22-08RW 10412-22-08RW M22X1.5 12 08 15 24.5 12 24
    10411-26-08RW 10412-26-08RW M26X1.5 12 08 18 25.5 12 27
    10411-26-10RW 10412-26-10RW M26X1.5 16 10 18 26 12 27
    10411-30-10RW 10412-30-10RW M30X2 16 10 22 28 14 32
    10411-30-12RW 10412-30-12RW M30X2 20 12 22 27 14 32
    10411-36-16RW 10412-36-16RW M36X2 25 16 28 31.2 14 38
    10411-45-20RW 10412-45-20RW M45X2 32 20 35 34.2 16 46
    10411-52-24RW 10412-52-24RW M52X2 40 24 42 37 16 55

  • 代  号 PART NO. 胶 管 HOSE BORE 管子外径 尺寸 DIMENSIONS 备注
    编织 BRAIDED 缠绕 SPIRAL 公称内径 DN 标号DASH TUBE O.D. A    C       H    NOTE
    50041-06-04RW -- 6 04 6 53.7 22 30.1 轻 系 列
    50041-08-05RW -- 8 05 8 57.2 24 32.4
    50041-08-06RW -- 10 06 8 58.9 24 33.1
    50041-10-05RW -- 8 05 10 55.5 23 30.6
    50041-10-06RW -- 10 06 10 57.1 23 31.3
    50041-12-06RW -- 10 06 12 59.5 23 34.5
    50041-12-08RW 50042-12-08RW 12 008 12 72.9 23 37.4
    50041-15-06RW 50042-15-06RW 10 06 15 60.3 25 34.5
    50041-15-08RW 50042-15-08RW 12 08 15 71.1 25 35.7
    50041-18-08RW 50042-18-08RW 12 08 18 73.9 26 38.5
    50041-18-10RW 50042-18-10RW 16 10 18 86.1 26 39.8
    50041-22-10RW 50042-22-10RW 16 10 22 88.6 28 42.3
    50041-22-12RW 50042-22-12RW 20 12 22 93.3 28 45.9
    50041-22-16RW 50042-22-16RW 25 16 22 103.1 28 46.7
    50041-28-16RW 50042-28-16RW 25 16 28 105.9 30 49.5
    50041-35-20RW 50042-35-20RW 32 20 35 119.7 36 57.8
    50041-42-24RW 50042-42-24RW 40 24 42 112.3 40 59.6
    50041-08-04RW -- 6 04 8 55.1 24 31.5 重 系 列
    50041-08-05RW -- 8 05 8 57.2 24 32.4
    50041-08-06RW -- 10 06 8 58.9 24 33.1
    50041-10-04RW -- 6 04 10 55.5 26 31.9
    50041-12-04RW -- 6 04 12 58.6 26 35.1
    50041-12-05RW -- 8 05 12 60.7 26 35.9
    50041-14-06RW -- 10 06 14 62.6 29 37.3
    50041-14-08RW 50042-14-08RW 12 08 14 74.3 29 38.8
    50041-14-12RW 50042-14-12RW 20 12 14 91.9 29 43.8
    50041-16-08RW 50042-16-08RW 12 08 16 77.1 30 41.7
    50041-16-10RW 50042-16-10RW 16 10 16 89.3 30 43
    50041-20-10RW 50042-20-10RW 16 10 20 94.3 36 48
    50041-20-12RW 50042-20-12RW 20 12 20 100.7 36 52.6
    50041-25-12RW 50042-25-12RW 20 12 25 101.8 40 54.4
    50041-25-16RW 50042-25-16RW 25 16 25 111.6 40 55.2
    50041-30-16RW 50042-30-16RW 25 16 30 115.8 44 59.4
    50041-30-20RW 50042-30-20RW 32 20 30 125.4 44 63.5
    50041-38-16RW 50042-38-16RW 25 16 38 120.1 50 63.6
    50041-38-20RW 50042-38-20RW 32 20 38 129.6 50 67.7

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S1
    12611A-02-04RW -- G1/8”X28 6 04 22 10 14
    12611A-04-04RW -- G1/4”X28 6 04 24 12 19
    12611A-04-05RW -- G1/4”X28 8 05 24 12 19
    12611A-04-06RW -- G1/4”X28 10 06 23.5 12 19
    12611A-06-04RW -- G3/8”X19 6 04 27.5 13.5 22
    12611A-06-05RW -- G3/8”X19 8 05 27.5 13.5 22
    12611A-06-06RW -- G3/8”X19 10 06 27 13.5 22
    12611A-06-08RW 12612A-06-08RW G3/8”X19 12 08 28 13.5 22
    12611A-08-06RW -- G1/2”X14 10 06 31.5 16 27
    12611A-08-08RW 12612A-08-08RW G1/2”X14 12 08 32.5 16 27
    12611A-08-10RW 12612A-08-10RW G1/2”X14 10 06 31.5 16 27
    12611A-08-12RW 12612A-08-12RW G1/2”X14 20 12 32 16 27
    12611A-12-08RW 12612A-12-08RW G3/4”X14 12 08 36 18.5 32
    12611A-12-10RW 12612A-12-10RW G3/4”X14 16 10 36.5 18.5 32
    12611A-12-12RW 12612A-12-12RW G3/4”X14 20 12 35.5 18.5 32
    12611A-12-16RW 12612A-12-16RW G3/4”X14 25 16 38.7 18.5 32
    12611A-16-12RW 12612A-16-12RW G1”X11 20 12 39.5 20.5 41
    12611A-16-16RW 12612A-16-16RW G1”X11 25 16 42.7 20.5 41
    12611A-20-20RW 12612A-20-20RW G1.1/4”X11 32 20 44.7 20.5 50
    12611A-24-24RW 12612A-24-24RW G1.1/2”X11 40 24 48 23 55
    12611A-32-24RW 12612A-32-24RW G2”X11 40 24 52.5 25.5 70
    12611A-32-32RW 12612A-32-32RW G2”X11 50 32 56 25.5 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE O形圈 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH O RING A C  S1
    12211-04-04RW -- G1/4”X19 6 04 O111 23 11 19
    12211-04-06RW -- G1/4”X19 10 06 O111 22.5 11 19
    12211-06-06RW -- G3/8”X19 10 06 O113 25.5 12 22
    12211-08-04RW -- G1/2”X14 6 04 O115 30 14 27
    12211-08-06RW -- G1/2”X14 10 06 O115 29.5 14 27
    12211-08-08RW 12212-08-08RW G1/2”X14 12 08 O115 30.5 14 27
    12211-10-10RW 12212-10-10RW G5/8”X14 16 10 O910 32.5 15.5 30
    12211-12-10RW 12212-12-10RW G3/4”X14 16 10 O119 33.5 15.5 32
    12211-12-12RW 12212-12-12RW G3/4”X14 20 12 O119 32.5 15.5 32
    12211-12-16RW 12212-12-16RW G3/4”X14 25 16 O119 35.7 15.5 32
    12211-16-16RW 12212-16-16RW G1”X11 25 16 O217 40.7 18.5 41
    12211-20-20RW 12212-20-20RW G1.1/4”X11 32 20 O222 44.2 20 50

  • 代  号 螺纹E 软     管 尺     寸
    公称内径 标      号 A C  S1
    13011-02-03SP R1/8”X28 5 03 22 10 12
    13011-02-04SP R1/8”X28 6 04 22.5 10 12
    13011-04-04SP R1/4”X19 6 04 27 14.5 14
    13011-04-05SP R1/4”X19 8 05 25 15.4 14
    13011-04-06SP R1/4”X19 10 06 27 14.5 17
    13011-06-04SP R3/8”X19 6 04 27.5 15 17
    13011-06-05SP R3/8”X19 8 05 26.5 15 17
    13011-06-06SP R3/8”X19 10 06 27.5 15 17
    13011-06-08SP R3/8”X19 12 08 30 15 19
    13011-08-06SP R1/2”X14 10 06 34.5 20 22
    13011-08-08SP R1/2”X14 12 08 35 20 22
    13011-08-10SP R1/2”X14 16 10 38 20 22
    13011-08-12SP R1/2”X14 20 12 38 20 27
    13011-12-08SP R3/4”X14 12 08 37 20 27
    13011-12-10SP R3/4”X14 16 10 38 20 27
    13011-12-12SP R3/4”X14 20 12 38.5 20 27
    13011-12-16SP R3/4”X14 25 16 39.5 20 32
    13011-16-12SP R1”X11 20 12 44 25.5 36
    13011-16-16SP R1”X11 25 16 45 25.5 36
    13011-20-20SP R1.1/4”X11 32 20 49.5 26.5 46
    13011-24-24SP R1.1/2”X11 40 24 52.5 26.5 50
    13011-32-24SP R2”X11 40 24 57 30 65
    13011-32-32SP R2”X11 50 32 59 30 65
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为13012-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 13012-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S2
    22111-02-04RW -- G1/8”X28 6 04 21 2 14
    22111-04-04RW -- G1/4”X19 6 04 21 4 19
    22111-06-05RW -- G3/8”X19 8 05 22 5 22
    22111-06-06RW -- G3/8”X19 10 06 22 5 22
    22111-06-08RW 22112-06-08RW G3/8”X19 12 08 23 5 22
    22111-08-04TRW -- G1/2”X14 6 04 21 6 27
    22111-08-06TRW -- G1/2”X14 10 06 20.5 6 27
    22111-08-08RW 22112-08-08RW G1/2”X14 12 08 25 6 27
    22111-08-10RW 22112-08-10RW G1/2”X14 16 10 25.5 6 27
    22111-10-10RW 22112-10-10RW G5/8”X14 16 10 26 8 30
    22111-10-12RW 22112-10-12RW G5/8”X14 20 12 25.5 8 30
    22111-12-08TRW 22112-12-08TRW G3/4”X14 12 08 23 9.5 32
    22111-12-10TRW 22112-12-10TRW G3/4”X14 16 10 23.5 9.5 32
    22111-12-12RW 22112-12-12RW G3/4”X14 20 12 26.5 9.5 32
    22111-16-12TRW 22112-16-12TRW G1”X11 20 12 22.5 11 41
    22111-16-16RW 22112-16-16RW G1”X11 25 16 30.2 11 41
    22111-20-16TRW 22112-20-16TRW G1.1/4”X11 25 16 28.7 11 50
    22111-20-20RW 22112-20-20RW G1.1/4”X11 32 20 30.7 10 50
    22111-24-24RW 22112-20-21RW G1.1/2”X11 40 24 39 11.5 55
    22111-32-32RW 22112-32-32RW G2”X11 50 32 43.5 15 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C H  S2
    22641-04-04RW -- G1/4”X19 6 04 43.8 5.5 20.2 19
    22641-04-05RW -- G1/4”X19 8 05 45.9 5.5 21.1 19
    22641-04-06RW -- G1/4”X19 10 06 47 5.5 21.8 19
    22641-06-04TRW -- G3/8”X19 6 04 43.2 6.3 19.6 22
    22641-06-05TRW -- G3/8”X19 8 05 45.3 6.3 20.5 22
    22641-06-06RW -- G3/8”X19 10 06 47.8 6.3 22.6 22
    22641-06-08RW -- G3/8”X19 12 08 61.2 6.3 24.8 22
    22641-08-06TRW -- G1/2”X14 10 06 47.7 7.5 22.5 27
    22641-08-08RW 22642-08-08RW G1/2”X14 12 08 62.5 7.5 26.1 27
    22641-10-08TRW 22642-10-08TRW G5/8”X14 12 08 60.8 9.5 24.4 30
    22641-10-10RW 22642-10-10RW G5/8”X14 10 10 73.1 9.5 27.8 30
    22641-12-08TRW 22642-12-08TRW G3/4”X14 12 08 61.2 10.9 24.8 32
    22641-12-10TRW 22642-12-10TRW G3/4”X14 16 10 71.4 10.9 26.1 32
    22641-12-12RW 22642-12-12RW G3/4”X14 20 12 76.8 10.9 31 32
    22641-16-12TRW 22642-16-12TRW G1”X11 20 12 75.5 11.7 29.7 41
    22641-16-16RW 22642-16-16RW G1”X11 25 16 90.6 11.7 34.2 41
    22641-20-16TRW 22642-20-16TRW G1.1/4”X11 25 16 88.6 11 32.2 50
    22641-20-20WRW 22642-20-20WRW G1.1/4”X11 32 20 103.1 11 41.2 50
    22641-24-20TRW 22642-24-20TRW G1.1/2”X11 32 20 99.2 13 37.3 55
    22641-24-24WRW 22642-24-24WRW G1.1/2”X11 40 24 118.5 13 45.8 55
    22641-32-24TRW 22642-32-24TRW G2”X11 40 24 116.4 16 43.7 70
    22641-32-32WRW 22642-32-32WRW G2”X11 50 32 142.8 16 53 70

  • 代  号 螺纹E 软     管 尺     寸
    公称内径 标      号 A    C    H   S2
    22191-02-04 G1/8”X28 6 04 30 2 38 14
    22191-04-03 G1/4”X19 5 03 27 4 35 19
    22191-04-04 G1/4”X19 6 04 30 4 38 19
    22191-04-05 G1/4”X19 8 05 33 4 41.5 19
    22191-06-05 G3/8”X19 8 05 33 5 42 22
    22191-06-06 G3/8”X19 10 06 35.3 5 44.3 22
    22191-06-08 G3/8”X19 12 08 41 5 50 22
    22191-08-06T G1/2”X14 10 06 35.3 6 46.8 27
    22191-08-08 G1/2”X14 12 08 41 6 52.5 27
    22191-10-10 G5/8”X14 16 10 56.5 8 57.5 30
    22191-10-12 G5/8”X14 20 12 65.5 8 67 30
    22191-12-08T G3/4”X14 12 08 41 9.5 52 32
    22191-12-10 G3/4”X14 16 10 56.5 9.5 58.5 32
    22191-12-12 G3/4”X14 20 12 65.5 9.5 68 32
    22191-16-12T G1”X11 20 12 66.2 11 68.5 41
    22191-16-14 G1”X11 22 14 71.2 11 69.5 41
    22191-16-16 G1”X11 25 16 76.7 11 75 41
    22191-20-16T G1.1/4”X11 25 16 76.7 10 78 50
    22191-20-20W G1.1/4”X11 32 20 92.3 10 85.3 50
    22191-24-24W G1.1/2”X11 40 24 109.4 11.5 108 55
    22191-32-32W G2”X11 50 32 133.1 15 123.8 70
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为22192-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 22192-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S1
    22611-04-04RW -- G1/4”X19 6 04 19.5 5.5 19
    22611-04-05RW -- G1/4”X19 8 05 19.5 5.5 19
    22611-04-06RW -- G1/4”X19 10 06 19.5 5.5 19
    22611-06-04TRW -- G3/8”X19 6 04 18.2 6.3 22
    22611-06-05TRW -- G3/8”X19 8 05 18.2 6.3 22
    22611-06-06RW -- G3/8”X19 10 06 20.7 6.3 22
    22611-06-08RW -- G3/8”X19 12 08 21.7 6.3 22
    22611-08-06TRW -- G1/2”X14 10 06 19.5 7.5 27
    22611-08-08RW 22612-08-08RW G1/2”X14 12 08 23.5 7.5 27
    22611-10-08TRW 22612-10-08TRW G5/8”X14 12 08 21 9.5 30
    22611-10-10RW 22612-10-10RW G5/8”X14 10 10 24.5 9.5 30
    22611-12-08TRW 22612-12-08TRW G3/4”X14 12 08 21.6 10.9 32
    22611-12-10TRW 22612-12-10TRW G3/4”X14 16 10 22.1 10.9 32
    22611-12-12RW 22612-12-12RW G3/4”X14 20 12 24.6 10.9 32
    22611-16-12TRW 22612-16-12TRW G1”X11 20 12 22.3 11.7 41
    22611-16-16RW 22612-16-16RW G1”X11 25 16 29 11.7 41
    22611-20-16TRW 22612-20-16TRW G1.1/4”X11 25 16 26.8 11 50
    22611-20-20WRW 22612-20-20WRW G1.1/4”X11 32 20 29.7 11 50
    22611-24-20TRW 22612-24-20TRW G1.1/2”X11 32 20 28.8 13 55
    22611-24-24WRW 22612-24-24WRW G1.1/2”X11 40 24 34.5 13 55
    22611-32-24TRW 22612-32-24TRW G2”X11 40 24 32.5 16 70
    22611-32-32WRW 22612-32-32WRW G2”X11 50 32 38 16 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S1
    13011-02-04SPRW -- R1/8”X28 6 04 22 10 12
    13011-04-04SPRW -- R1/4”X28 6 04 26.5 14.5 14
    13011-04-05SPRW -- R1/4”X28 8 05 27.4 15.4 14
    13011-04-06SPRW -- R1/4”X28 10 06 26 14.5 17
    13011-06-04SPRW -- R3/8”X19 6 04 27 15 17
    13011-06-05SPRW -- R3/8”X19 8 05 27 15 17
    13011-06-06SPRW -- R3/8”X19 10 06 26.5 15 17
    13011-06-08SPRW 13012-06-08SPRW R3/8”X19 12 08 27.5 15 19
    13011-08-06SPRW -- R1/2”X14 10 06 33.5 20 22
    13011-08-08SPRW 13012-08-08SPRW R1/2”X14 12 08 34.5 20 22
    13011-08-10SPRW 13012-08-10SPRW R1/2”X14 10 06 33.5 20 22
    13011-08-12SPRW 13012-08-12SPRW R1/2”X14 20 12 36 20 27
    13011-12-08SPRW 13012-12-08SPRW R3/4”X14 12 08 36.5 20 27
    13011-12-10SPRW 13012-12-10SPRW R3/4”X14 16 10 37 20 27
    13011-12-12SPRW 13012-12-12SPRW R3/4”X14 20 12 36 20 27
    13011-12-16SPRW 13012-12-16SPRW R3/4”X14 25 16 40.2 20 32
    13011-16-12SPRW 13012-16-12SPRW R1”X11 20 12 42.5 25.5 36
    13011-16-16SPRW 13012-16-16SPRW R1”X11 25 16 45.7 25.5 36
    13011-20-20SPRW 13012-20-20SPRW R1.1/4”X11 32 20 48.7 26.5 46
    13011-24-24SPRW 13012-24-24SPRW R1.1/2”X11 40 24 51.5 26.5 50
    13011-32-24SPRW 13012-32-24SPRW R2”X11 40 24 57 30 65
    13011-32-32SPRW 13012-32-32SPRW R2”X11 50 32 60.5 30 65

  • 代  号 管子外径D 软     管 尺     寸
    公称内径 标      号 A    C    H   S2
    22691-02-03 G1/8”X28 5 03 26.5 5.5 31.5 14
    22691-02-04 G1/8”X28 6 04 27.5 5.5 35.5 14
    22691-04-03 G1/4”X19 5 03 26.5 5.5 33.5 19
    22691-04-04 G1/4”X19 6 04 27.5 5.5 37 19
    22691-04-05 G1/4”X19 8 05 31 5.5 41.5 19
    22691-04-06 G1/4”X19 10 06 30 5.5 36.5 19
    22691-06-04 G3/8”X19 6 04 27.5 6.3 39 22
    22691-06-05 G3/8”X19 8 05 31 6.3 43.5 22
    22691-06-06 G3/8”X19 10 06 33 6.3 44.5 22
    22691-08-06T G1/2”X14 10 06 35.3 7 43.3 27
    22691-08-08 G1/2”X14 12 08 42.5 7.5 53 27
    22691-08-10 G1/2”X14 16 10 56.5 7.5 55.5 27
    22691-10-08 G5/8”X14 12 08 42.5 9.5 53.5 30
    22691-10-10 G5/8”X14 16 10 48.5 9.5 58 30
    22691-12-08T G3/4”X14 12 08 41 10.9 52.1 32
    22691-12-10 G3/4”X14 16 10 48.5 10.9 58 32
    22691-12-12 G3/4”X14 20 12 50.5 10.9 66 32
    22691-16-12T G1”X11 20 12 65.5 11.7 68.3 41
    22691-16-14 G1”X11 22 14 71.2 11.7 69.3 41
    22691-16-16 G1”X11 25 16 66 11.7 78.5 41
    22691-20-16T G1.1/4”X11 25 16 78 11 69.5 50
    22691-20-20W G1.1/4”X11 32 20 91.5 11 84.3 50
    22691-24-24W G1.1/2”X11 40 24 109.4 13 103 55
    22691-32-32W G2”X11 50 32 131.8 16 123.3 70
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为22692-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 22692-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A    C       H      S2
    22141-02-04RW -- G1/8”X28 6 04 44.9 2 21.3 14
    22141-04-04RW -- G1/4”X19 6 04 44.9 4 21.3 19
    22141-06-05RW -- G3/8”X19 8 05 47.7 5 22.9 22
    22141-06-06RW -- G3/8”X19 10 06 48.8 5 23.6 22
    22141-06-08RW 22142-06-08RW G3/8”X19 12 08 62.2 5 25.8 22
    22141-08-04TRW -- G1/2”X14 6 04 45.2 6 21.6 27
    22141-08-06TRW -- G1/2”X14 10 06 48.4 6 23.2 27
    22141-08-08RW 22142-08-08RW G1/2”X14 12 08 63.6 6 27.2 27
    22141-08-10RW 22142-08-10RW G1/2”X14 16 10 73.8 6 28.5 27
    22141-10-10RW 22142-10-10RW G5/8”X14 16 10 74.1 8 28.8 30
    22141-10-12RW 22142-10-12RW G5/8”X14 20 12 77.4 8 31.6 30
    22141-12-08TRW 22142-12-08TRW G3/4”X14 12 08 62.2 9.5 25.8 32
    22141-12-10TRW 22142-12-10TRW G3/4”X14 16 10 72.4 9.5 27.1 32
    22141-12-12RW 22142-12-12RW G3/4”X14 20 12 78.1 9.5 32.3 32
    22141-16-12TRW 22142-16-12TRW G1”X11 20 12 75.7 11 29.9 41
    22141-16-16RW 22142-16-16RW G1”X11 25 16 91.4 11 35 41
    22141-20-16TRW 22142-20-16TRW G1.1/4”X11 25 16 90 11 33.6 50
    22141-20-20WRW 22142-20-20RW G1.1/4”X11 32 20 101 10 41.9 50
    22141-24-24WRW 22142-20-21RW G1.1/2”X11 40 24 121.7 11.5 49 55
    22141-32-32WRW 22142-32-32RW G2”X11 50 32 146.7 15 56.9 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A    C    H   S2
    22691-04-04RW -- G1/4”X19 6 04 31.5 5.5 36.5 19
    22691-04-05RW -- G1/4”X19 8 05 34.5 5.5 39.5 19
    22691-04-06RW -- G1/4”X19 10 06 36.3 5.5 41.8 19
    22691-06-04TRW -- G3/8”X19 6 04 31.5 6.3 35.7 22
    22691-06-05TRW -- G3/8”X19 8 05 34.5 6.3 40.7 22
    22691-06-06RW -- G3/8”X19 10 06 36.3 6.3 43 22
    22691-06-08RW -- G3/8”X19 12 08 42.5 6.3 49.2 22
    22691-08-06TRW -- G1/2”X14 10 06 36.3 7.5 42.8 27
    22691-08-08RW 22692-08-08RW G1/2”X14 12 08 42.5 7.5 51 27
    22691-10-08TRW 22692-10-08TRW G5/8”X14 12 08 42.5 9.5 48.5 30
    22691-10-10RW 22692-10-10RW G5/8”X14 10 10 57 9.5 56 30
    22691-12-08TRW 22692-12-08TRW G3/4”X14 12 08 42.5 10.9 49.1 32
    22691-12-10TRW 22692-12-10TRW G3/4”X14 16 10 57 10.9 53.6 32
    22691-12-12RW 22692-12-12RW G3/4”X14 20 12 63.2 10.9 63.1 32
    22691-16-12TRW 22692-16-12TRW G1”X11 20 12 63.2 11.7 61.3 41
    22691-16-16RW 22692-16-16RW G1”X11 25 16 78.9 11.7 73.8 41
    22691-20-16TRW 22692-20-16TRW G1.1/4”X11 25 16 78.9 11 71.1 50
    22691-20-20WRW 22692-20-20WRW G1.1/4”X11 32 20 92.7 11 89 50
    22691-24-20TRW 22692-24-20TRW G1.1/2”X11 32 20 92.7 13 83.5 55
    22691-24-24WRW 22692-24-24WRW G1.1/2”X11 40 24 111.4 13 103.5 55
    22691-32-24TRW 22692-32-24TRW G2”X11 40 24 111.4 16 100.5 70
    22691-32-32WRW 22692-32-32WRW G2”X11 50 32 138.6 16 123.8 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S1
    10711-14-04RW -- M14X1.5 6 04 30 18 17
    10711-14-06RW -- M14X1.5 10 06 29.5 18 17
    10711-16-05RW -- M16X1.5 8 05 31 19 17
    10711-16-05RW -- M16X1.5 8 05 31 19 17
    10711-18-06RW -- M18X1.5 10 06 30.5 19 19
    10711-22-08RW -- M22X1.5 12 08 34 19.5 22
    10711-24-08RW 10712-24-08RW M24X1.5 12 08 34.5 20 24
    10711-27-10RW 10712-27-10RW M27X1.5 16 10 37.5 20.5 27
    10711-30-12RW 10712-30-12RW M30X1.5 20 12 40 23 32
    10711-33-12RW 10712-33-12RW M33X2 20 12 43 26 36
    10711-39-16RW 10712-39-16RW M39X2 25 16 49.7 27.5 41
    10711-42-20RW 10712-42-20RW M42X2 32 20 50.7 28.5 46
    10711-45-20RW 10712-45-20RW M45X2 32 20 50.7 28.5 46

  •
    代  号 螺纹E 软     管 管子外径 O形圈 尺寸
    公称内径 标      号 A   C    S2
    20411-12-04 M12X1.5 6 04 6 O04.5X1.5 25 1 17
    20411-14-04 M14X1.5 6 04 8 O06.5X1.5 26.5 2 19
    20411-14-06 M14X1.5 10 06 8 O06.5X1.5 27.5 2 19
    20411-16-04 M16X1.5 6 04 10 O08.0X1.5 27 2 22
    20411-16-05 M16X1.5 8 05 10 O08.0X1.5 27 2 22
    20411-16-06 M16X1.5 10 06 10 O08.0X1.5 28 2 22
    20411-18-05T M18X1.5 8 05 12 O10.0X1.5 25.5 1.5 22
    20411-18-06 M18X1.5 10 06 12 O10.0X1.5 29 2.5 24
    20411-18-08 M18X1.5 12 08 12 O10.0X1.5 29.5 2.5 24
    20411-22-05T M22X1.5 8 05 15 O12.0X2 26.5 3 27
    20411-22-06T M22X1.5 10 06 15 O12.0X2 28.5 3 27
    20411-22-08 M22X1.5 12 08 15 O12.0X2 32.5 2.5 27
    20411-26-10 M26X1.5 16 10 18 O15.0X2 34.5 2.5 32
    20411-26-12 M26X1.5 20 12 18 O15.0X2 34.5 2.5 32
    20411-30-10T M30X2 16 10 22 O20.0X2 33 3.8 36
    20411-30-12 M30X2 20 12 22 O20.0X2 36.5 4 36
    20411-36-12T M36X2 20 12 28 O26.0X2 36 4.5 46
    20411-36-14T M36X2 22 14 28 O26.0X2 36.5 4.5 46
    20411-45-16T M45X2 25 16 35 O32.0X2 42 4 55
    20411-45-20T M45X2 32 20 35 O32.0X2 43 4 55
    20411-52-20T M52X2 32 20 42 O38.0X2 44.5 4 60
    20411-52-24T M52X2 40 24 42 O38.0X2 44.5 4 60
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20412-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20412-XX-XX.
  • 代  号 螺纹E 软     管 管子外径 尺寸
    公称内径 标      号    A       C      S1
    10511-14-04 M14X1.5 6 04 6 24 12 14
    10511-16-04 M16X1.5 6 04 8 24.5 12 17
    10511-18-04 M18X1.5 6 04 10 25 12 19
    10511-20-05 M20X1.5 8 05 12 26 12 22
    10511-20-06 M20X1.5 10 06 12 26 12 22
    10511-22-05 M22X1.5 8 05 14 28.5 14 24
    10511-22-06 M22X1.5 10 06 14 28.5 14 24
    10511-22-08 M22X1.5 12 08 14 29 14 24
    10511-24-08 M24X1.5 12 08 16 30 14 27
    10511-30-10 M30X2 16 10 20 35.5 16 32
    10511-30-12 M30X2 20 12 20 35.5 16 32
    10511-36-12 M36X2 20 12 25 38.5 18 38
    10511-36-16 M36X2 25 16 25 40 18 38
    10511-42-16 M42X2 25 16 30 43 20 46
    10511-42-20 M42X2 32 20 30 44 20 46
    10511-52-20 M52X2 32 20 38 48 22 55
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为10512-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 10512-XX-XX.
  • 代  号 螺纹E 软     管 尺     寸
    公称内径 标      号 A    C       H      S2
    20741-14-04 M14X1.5 6 04 38 8.5 19 19
    20741-16-05 M16X1.5 8 05 42.3 8 20.7 22
    20741-18-06 M18X1.5 10 06 45.5 10 22 24
    20741-22-08 M22X1.5 12 08 57.5 10 24.5 27
    20741-27-10 M27X1.5 16 10 60 11 26.5 32
    20741-30-12 M30X1.5 20 12 74 11 30 36
    20741-33-12 M33X2 20 12 77.4 13 30 41
    20741-33-16 M33X2 25 16 85 13 30.8 41
    20741-36-14 M36X2 22 14 79.8 14 29.6 4
    20741-36-16 M36X2 25 16 85.7 14 31.5 41
    20741-39-16 M39X2 25 16 85 14 33 46
    20741-45-20W M45X2 32 20 97 15 36.2 55
    20741-52-24W M52X2 40 24 115.3 17 40.6 60
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为20742-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20742-XX-XX.
  • 代  号 管子外径D 软     管 尺     寸
    公称内径 标      号 A C  S2
    22611-02-03 G1/8”X28 5 03 15 5.5 14
    22611-02-04 G1/8”X28 6 04 17.5 5.5 14
    22611-04-03 G1/4”X19 5 03 17 5.5 19
    22611-04-04 G1/4”X19 6 04 19 5.5 19
    22611-04-05 G1/4”X19 8 05 19 5.5 19
    22611-04-06 G1/4”X19 10 06 19 5.5 19
    22611-06-04 G3/8”X19 6 04 21 6.3 22
    22611-06-05 G3/8”X19 8 05 21 6.3 22
    22611-06-06 G3/8”X19 10 06 21 6.3 22
    22611-06-08 G3/8”X19 12 08 21.5 6.3 22
    22611-08-06T G1/2”X14 10 06 21 7.5 27
    22611-08-08 G1/2”X14 12 08 23 7.5 27
    22611-10-08 G5/8”X14 12 08 23.5 9.5 30
    22611-10-10 G5/8”X14 16 10 24.5 9.5 30
    22611-12-08T G3/4”X14 12 08 22 10.9 32
    22611-12-10 G3/4”X14 16 10 24.5 10.9 32
    22611-12-12 G3/4”X14 20 12 24.5 10.9 32
    22611-16-12T G1”X11 20 12 24 11.7 41
    22611-16-14 G1”X11 22 14 26 11.7 41
    22611-16-16 G1”X11 25 16 27.5 11.7 41
    22611-20-16T G1.1/4”X11 25 16 27.5 11 50
    22611-20-20W G1.1/4”X11 32 20 30.5 11 50
    22611-24-20T G1.1/2”X11 32 20 32 13 55
    22611-24-24W G1.1/2”X11 40 24 32 13 55
    22611-32-24T G2”X11 40 24 30 16 70
    22611-32-32W G2”X11 50 32 31.9 16 70
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为22612-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 22612-XX-XX.
  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A    C    H   S2
    22191-02-04RW -- G1/8”X28 6 04 31.5 2 38 14
    22191-04-04RW -- G1/4”X19 6 04 31.5 4 38 19
    22191-06-05RW -- G3/8”X19 8 05 34.5 5 42 22
    22191-06-06RW -- G3/8”X19 10 06 36.3 5 44.3 22
    22191-06-08RW 22192-06-08RW G3/8”X19 12 08 42.5 5 50.5 22
    22191-08-04TRW -- G1/2”X14 6 04 31.5 6 38.5 27
    22191-08-06TRW -- G1/2”X14 10 06 36.3 6 43.8 27
    22191-08-08RW 22192-08-08RW G1/2”X14 12 08 42.5 6 52.5 27
    22191-08-10RW 22192-08-10RW G1/2”X14 16 10 57 6 57 27
    22191-10-10RW 22192-10-10RW G5/8”X14 16 10 57 8 57.5 30
    22191-10-12RW 22192-10-12RW G5/8”X14 20 12 63.2 8 64 30
    22191-12-08TRW 22192-12-08TRW G3/4”X14 12 08 42.5 9.5 50.5 32
    22191-12-10TRW 22192-12-10TRW G3/4”X14 16 10 57 9.5 55 32
    22191-12-12RW 22192-12-12RW G3/4”X14 20 12 63.2 9.5 65 32
    22191-16-12TRW 22192-16-12TRW G1”X11 20 12 63.2 11 61.5 41
    22191-16-16RW 22192-16-16RW G1”X11 25 16 78.9 11 75 41
    22191-20-16TRW 22192-20-16TRW G1.1/4”X11 25 16 78.9 11 73 50
    22191-20-20WRW 22192-20-20RW G1.1/4”X11 32 20 92.7 10 90 50
    22191-24-24WRW 22192-20-21RW G1.1/2”X11 40 24 111.4 11.5 108 55
    22191-32-32WRW 22192-32-32RW G2”X11 50 32 138.6 15 129.3 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S1   S2
    22611D-04-04RW -- G1/4”X19 6 04 23 5.5 19 19
    22611D-06-06RW -- G3/8”X19 10 06 25.7 6.3 22 22
    22611D-08-08RW 22612D-08-08RW G1/2”X14 12 08 30.5 7.5 27 27
    22611D-10-10RW 22612D-10-10RW G5/8”X14 10 06 30 9.5 30 30
    22611D-12-12RW 22612D-12-12RW G3/4”X14 20 12 32.1 10.9 32 32
    22611D-16-16RW 22612D-16-16RW G1”X11 25 16 38.5 11.7 41 41
    22611D-20-20WRW 22612D-20-20WRW G1.1/4”X11 32 20 44.7 11 50 50
    22611D-24-24WRW 22612D-24-24WRW G1.1/2”X11 40 24 45 13 55 55
    22611D-32-32WRW 22612D-32-32WRW G2”X11 50 32 51 16 70 70

  • 代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S1
    12211-02-04RW -- G1/8”X28 6 04 22 10 12
    12211-02-04RW -- G1/4”X28 6 04 24 12 14
    12211-02-04RW -- G1/4”X28 8 05 24 12 14
    12211-02-04RW -- G1/4”X28 10 06 23.5 12 14
    12211-02-04RW -- G3/8”X19 6 04 25.5 13.5 17
    12211-02-04RW -- G3/8”X19 8 05 25.5 13.5 17
    12211-02-04RW -- G3/8”X19 10 06 25 13.5 17
    12211-02-04RW 12212-02-04RW G3/8”X19 12 08 26 13.5 19
    12211-08-06RW 12212-08-06RW G1/2”X14 10 06 29.5 16 22
    12211-08-08RW 12212-08-08RW G1/2”X14 12 08 30.5 16 22
    12211-08-10RW 12212-08-10RW G1/2”X14 10 06 29.5 16 22
    12211-08-12RW 12212-08-12RW G1/2”X14 20 12 32 16 27
    12211-12-08RW 12212-12-08RW G3/4”X14 12 08 35 18.5 27
    12211-12-10RW 12212-12-10RW G3/4”X14 16 10 35.5 18.5 27
    12211-12-12RW 12212-12-12RW G3/4”X14 20 12 34.5 18.5 27
    12211-12-16RW 12212-12-16RW G3/4”X14 25 16 38.7 18.5 32
    12211-16-12RW 12212-16-12RW G1”X11 20 12 37.5 20.5 36
    12211-16-16RW 12212-16-16RW G1”X11 25 16 40.7 20.5 36
    12211-20-20RW 12212-20-20RW G1.1/4”X11 32 20 42.7 20.5 46
    12211-24-24RW 12212-24-24RW G1.1/2”X11 40 24 48 23 50
    12211-32-24RW 12212-32-24RW G2”X11 40 24 52.5 25.5 65
    12211-32-32RW 12212-32-32RW G2”X11 50 32 56 25.5 65

  • 代  号 PART NO. 螺纹E THREAD E 胶管 HOSE BORE 尺 寸 DIMENSIONS
    公称内径 DN 标号 DASH A C  S2
    22111-02-04 G1/8”X28 6 04 19 2 14
    22111-04-03 G1/4”X19 5 03 19 4 19
    22111-04-04 G1/4”X19 6 04 19.5 4 19
    22111-06-05 G3/8”X19 8 05 20 5 22
    22111-06-06 G3/8”X19 10 06 20.5 5 22
    22111-06-08 G3/8”X19 12 08 21 5 22
    22111-08-06T G1/2”X14 10 06 22.5 6 27
    22111-08-08 G1/2”X14 12 08 23 6 27
    22111-08-10 G1/2”X14 16 10 24 6 27
    22111-10-10 G5/8”X14 16 10 25 8 30
    22111-10-12 G5/8”X14 20 12 25 8 30
    22111-12-08T G3/4”X14 12 08 25 9.5 32
    22111-12-10 G3/4”X14 16 10 26 9.5 32
    22111-12-12 G3/4”X14 20 12 26 9.5 32
    22111-16-12T G1”X11 20 12 26.5 11 41
    22111-16-14 G1”X11 22 14 26.5 11 41
    22111-16-16 G1”X11 25 16 28 11 41
    22111-20-16T G1.1/4”X11 25 16 27.5 11 50
    22111-20-20W G1.1/4”X11 32 20 31.5 10 50
    22111-24-24W G1.1/2”X11 40 24 37 11.5 55
    22111-32-32W G2”X11 50 32 34 15 70
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为22112-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 22112-XX-XX.
  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A    C       D       H    L
    87642-08-08 1/2” 12 08 57.5 31.7 24 25 7.75
    87642-08-12 1/2” 20 12 77 31.7 24 29.6 7.75
    87642-12-10 3/4” 16 10 72.5 41.3 32 28.2 8.76
    87642-12-12 3/4” 20 12 75.5 41.3 32 32 8.76
    87642-16-16 1” 25 16 86 47.6 38 34 9.53
    87642-20-20 1.1/4” 32 20 100 54 44 40 10.29
    87642-24-20 1.1/2” 32 20 105.8 63.5 51 45.1 12.57
    87642-24-24 1.1/2” 40 24 112 63.5 51 46 12.57
    87642-32-24 2” 40 24 125.4 79.4 67 54.7 12.57
    87642-32-32 2” 50 32 143 79.4 67 49 12.57
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87642-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87642-XX-XX.
  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH    A       C       D    L
    87611-08-08RW 87612-08-08RW 1/2” 12 08 48.5 31.7 24 7.75
    87611-12-08RW 87612-12-08RW 3/4” 12 08 51.5 41.3 32 8.76
    87611-12-10RW 87612-12-10RW 3/4” 16 10 52 41.3 32 8.76
    87611-12-12RW 87612-12-12RW 3/4” 20 12 51 41.3 32 8.76
    87611-12-16RW 87612-12-16RW 3/4” 25 16 54.2 41.3 32 8.76
    87611-16-12RW 87612-16-12RW 1” 20 12 56 47.6 38 9.53
    87611-16-16RW 87612-16-16RW 1” 25 16 59.2 47.6 38 9.53
    87611-16-20RW 87612-16-20RW 1” 32 20 59.2 47.6 38 9.53
    87611-20-16RW 87612-20-16RW 1.1/4” 25 16 67.2 54 44 10.29
    87611-20-20RW 87612-20-20RW 1.1/4” 32 20 67.2 54 44 10.29
    87611-24-20RW 87612-24-20RW 1.1/2” 32 20 76.2 63.5 51 12.57
    87611-24-24RW 87612-24-24RW 1.1/2” 40 24 77 63.5 51 12.57
    87611-32-24RW 87612-32-24RW 2” 40 24 88 79.4 67 12.57
    87611-32-32RW 87612-32-32RW 2” 50 32 91.5 79.4 67 12.57

  • 代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
    编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A C D L
    87311-08-08RW 87311-08-08RW 1/2” 12 08 47.5 30.2 24 6.73
    87311-12-08RW 87311-12-08RW 3/4” 12 08 48.5 38.1 31.7 6.73
    87311-12-10RW 87311-12-10RW 3/4” 16 10 49 38.1 31.7 6.73
    87311-12-12RW 87311-12-12RW 3/4” 20 12 48 38.1 31.7 6.73
    87311-12-16RW 87311-12-16RW 3/4” 25 16 51.2 38.1 31.7 6.73
    87311-16-12RW 87311-16-12RW 1” 20 12 51 44.4 38 8
    87311-16-16RW 87311-16-16RW 1” 25 16 54.2 44.4 38 8
    87311-16-20RW 87311-16-20RW 1” 32 20 54.2 44.4 38 8
    87311-20-16RW 87311-20-16RW 1.1/4” 25 16 59.2 50.8 43 8
    87311-20-20RW 87311-20-20RW 1.1/4” 32 20 59.2 50.8 43 8
    87311-24-20RW 87311-24-20RW 1.1/2” 32 20 69.2 60.3 50 8
    87311-24-24RW 87311-24-24RW 1.1/2” 40 24 70 60.3 50 8
    87311-32-24RW 87311-32-24RW 2” 40 24 72 71.4 62 9.53
    87311-32-32RW 87311-32-32RW 2” 50 32 75.5 71.4 62 9.53

  • 代  号 法兰型号 软     管 尺     寸
    公称内径 标      号 A    C       D    H L
    87692-08-08 1/2” 12 08 42.5 31.7 24 25 7.75
    87692-12-10 3/4” 16 10 56 41.3 32 56.5 8.76
    87692-12-12 3/4” 20 12 50.5 41.3 32 65.5 8.76
    87692-16-12 1” 20 12 65.5 47.6 38 69 9.53
    87692-16-16 1” 25 16 66 47.6 38 78 9.53
    87692-16-20 1” 32 20 91.5 47.6 38 85.5 9.53
    87692-20-16 1.1/4” 25 16 76.7 54 44 78.5 10.29
    87692-20-20 1.1/4” 32 20 75 54 44 92 10.29
    87692-24-20 1.1/2” 32 20 91.5 63.5 51 94.5 12.57
    87692-24-24 1.1/2” 40 24 89 63.5 51 107 12.57
    87692-32-24 2” 40 24 109.4 79.4 67 116 12.57
    87692-32-32 2” 50 32 115.5 79.4 67 138.5 12.57
    注:1.上诉代号用于编制软管。    2.如需用于缠绕软管代码号改为87692-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87692-XX-XX.
产品介绍
产品应用
  • 油气及海洋

    应用于化学品压注、海底液压元件控制、海底井控等,可供超长管线。

  • 水射流

    应用于压力达4000bar(58000 psi)的使用环境,如超高压水刀射流破拆(钢筋混凝土拆除等)、管线切割、纸张或钢铁切割以及需要超高压的工业清洗,如贮罐和容器清洗、表面处理、建筑物表面清洗、除漆等。

  • 螺栓预紧

    应用于陆地及海上螺栓预紧系统及液压扭矩扳手等。

  • 压力试验设备

    应用于阀、工具.控制面板、维修设备等的控制。

  • 换热器

    应用于小口径换热器管的清洗等。

压力色标

利通科技超高压树脂软管采用国际通用的颜色标识对压力等级做出区分,便于用户辨识,降低安全风险

  • 10000psi - 690bar

  • 15,000psi-1034bar

  • 20,000psi-1379bar

  • 30,000psi-2068bar

  • 40,000psi-2758bar

  • 55,000psi-3792bar

定制软管总成

软管总成由超高压树脂软管、连接件和配套附件装配而成,由于其多在超高压的环境下使用,装配的专业度对超高压树脂软管总成的安全性及使用性能起着决定性作用。

利通科技将用户的使用体验视为生命,从软管、连接件、配件到半成品、总成成品检验,每一根合格出厂的超高压树脂软管总成都经历了层层把关。利通科技对精益生产的实施及精益理念的贯彻也绝不容许有不良品流入市场。

选择合适的产品

与利通科技其他软管产品的选型一样,您可以从以下几个方面选择合适的产品型号:

工作压力 : 由产品的使用工况所决定的最大工作压力、脉冲、以及要求的安全系数等;

使用温度 : 包括介质最高/最低使用温度及环境最高/最低温度等;

使用介质 : 介质的物理及化学性能等将对软管材质的选择产生决定性的影响;

应用环境的特殊要求 : 某些特定的使用环境会对产品的耐磨度、耐老化性能、耐曲挠性能、耐脉冲性能、弯曲半径等提出特殊要求(请咨询我们的业务人员提供最佳解决方案);

连接件选型 : 选择合适的连接件是生产合格总成产品的前提,根据设备的设计需求对连接件进行有效选择(或设计)将极大的提高总成产品的生产效率。

  • 保护套

    透明PVC保护套或者恶劣环境所需的带有缠绕钢丝加强的超强保护套。注意:软管保护套不能作为操作人员的保护设施使用。

  • 不锈钢抓环

    抓环的扣压有设定距离要求。在使用利通科技热塑管进行换热器清洗时,抓环可以为操作人员提供帮助。

  • 软管防脱扣

    防脱扣在软管意外脱接时将高压管牢牢拴住,防止操作人员或设备受到伤害。强烈建议在高压应用环境中配置。拉伸强度范围1372KN到2477KN。

  • 限弯节

    限弯节可有效的预防恶劣操作条件下软管和接头连接处因扭曲产生泄露、破裂等问题。

证书

利通科技先后通过的产品认证包括安标(MA)、MSHA、美国石油协会API产品认证API-16C和API-7K、美国船级社ABS产品认证(石油钻采装备及钢丝编织橡胶软管总成)及型式认可(石油钻采装备)、挪威船级社DNV型式认可(LTSA699)、俄罗斯GOST石油认证、劳氏防火认证等,已通过的管理体系认证包括DNV质量管理体系(符合标准GB/T19001-2016/ISO 9001:2015)、石油天然气行业制造类组织的质量管理体系(符合标准API SpecificationQ1)、环境管理体系(符合标准GB/T24001-2016/ISO14001:2015)、武器装备质量管理体系(符合标准GJB9001C-2017)和两化融合管理体系(GB/T 23001-2017)等。利通科技检测中心自2016年起获CNAS认可,设有脉冲实验室、爆破实验室、耐火实验室、盐雾实验室等近二十个实验室,检测结果被认定具有客观性、准确性及权威性。

相关产品
联系客服
400-6191-666
