45°SAE 法兰3000PSI

在线咨询
全国服务热线 :
45°SAE 法兰3000PSI
数据展示

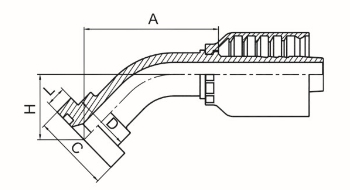

代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A C D H L
87341-08-08RW 87342-08-08RW 1/2” 12 08 59.7 30.2 24 23.3 6.73
87341-12-08RW 87342-12-08RW 3/4” 12 08 60.4 38.1 31.7 24 6.73
87341-12-10RW 87342-12-10RW 3/4” 16 10 70.6 38.1 31.7 25.3 6.73
87341-12-12RW 87342-12-12RW 3/4” 20 12 73.9 38.1 31.7 28.1 6.73
87341-12-16RW 87342-12-16RW 3/4” 25 16 86.1 38.1 31.7 29.7 6.73
