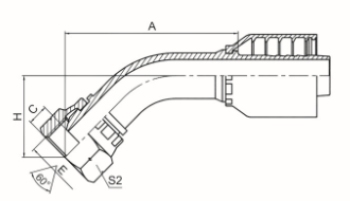

45°英管内螺纹60°外锥面

在线咨询
全国服务热线 :
45°英管内螺纹60°外锥面
数据展示
代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C H  S2
22641-04-04RW -- G1/4”X19 6 04 43.8 5.5 20.2 19
22641-04-05RW -- G1/4”X19 8 05 45.9 5.5 21.1 19
22641-04-06RW -- G1/4”X19 10 06 47 5.5 21.8 19
22641-06-04TRW -- G3/8”X19 6 04 43.2 6.3 19.6 22
22641-06-05TRW -- G3/8”X19 8 05 45.3 6.3 20.5 22
22641-06-06RW -- G3/8”X19 10 06 47.8 6.3 22.6 22
22641-06-08RW -- G3/8”X19 12 08 61.2 6.3 24.8 22
22641-08-06TRW -- G1/2”X14 10 06 47.7 7.5 22.5 27
22641-08-08RW 22642-08-08RW G1/2”X14 12 08 62.5 7.5 26.1 27
22641-10-08TRW 22642-10-08TRW G5/8”X14 12 08 60.8 9.5 24.4 30
22641-10-10RW 22642-10-10RW G5/8”X14 10 10 73.1 9.5 27.8 30
22641-12-08TRW 22642-12-08TRW G3/4”X14 12 08 61.2 10.9 24.8 32
22641-12-10TRW 22642-12-10TRW G3/4”X14 16 10 71.4 10.9 26.1 32
22641-12-12RW 22642-12-12RW G3/4”X14 20 12 76.8 10.9 31 32
22641-16-12TRW 22642-16-12TRW G1”X11 20 12 75.5 11.7 29.7 41
22641-16-16RW 22642-16-16RW G1”X11 25 16 90.6 11.7 34.2 41
22641-20-16TRW 22642-20-16TRW G1.1/4”X11 25 16 88.6 11 32.2 50
22641-20-20WRW 22642-20-20WRW G1.1/4”X11 32 20 103.1 11 41.2 50
22641-24-20TRW 22642-24-20TRW G1.1/2”X11 32 20 99.2 13 37.3 55
22641-24-24WRW 22642-24-24WRW G1.1/2”X11 40 24 118.5 13 45.8 55
22641-32-24TRW 22642-32-24TRW G2”X11 40 24 116.4 16 43.7 70
22641-32-32WRW 22642-32-32WRW G2”X11 50 32 142.8 16 53 70
