英管内螺纹60°锥面

在线咨询
全国服务热线 :
英管内螺纹60°锥面
数据展示

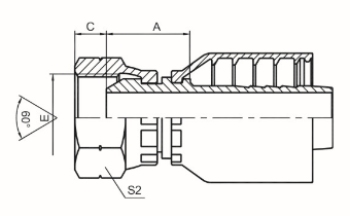

代  号 PART NO. 螺纹E 胶 管 HOSE BORE 尺寸 DIMENSIONS
编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH A C  S1
22611-04-04RW -- G1/4”X19 6 04 19.5 5.5 19
22611-04-05RW -- G1/4”X19 8 05 19.5 5.5 19
22611-04-06RW -- G1/4”X19 10 06 19.5 5.5 19
22611-06-04TRW -- G3/8”X19 6 04 18.2 6.3 22
22611-06-05TRW -- G3/8”X19 8 05 18.2 6.3 22
22611-06-06RW -- G3/8”X19 10 06 20.7 6.3 22
22611-06-08RW -- G3/8”X19 12 08 21.7 6.3 22
22611-08-06TRW -- G1/2”X14 10 06 19.5 7.5 27
22611-08-08RW 22612-08-08RW G1/2”X14 12 08 23.5 7.5 27
22611-10-08TRW 22612-10-08TRW G5/8”X14 12 08 21 9.5 30
22611-10-10RW 22612-10-10RW G5/8”X14 10 10 24.5 9.5 30
22611-12-08TRW 22612-12-08TRW G3/4”X14 12 08 21.6 10.9 32
22611-12-10TRW 22612-12-10TRW G3/4”X14 16 10 22.1 10.9 32
22611-12-12RW 22612-12-12RW G3/4”X14 20 12 24.6 10.9 32
22611-16-12TRW 22612-16-12TRW G1”X11 20 12 22.3 11.7 41
22611-16-16RW 22612-16-16RW G1”X11 25 16 29 11.7 41
22611-20-16TRW 22612-20-16TRW G1.1/4”X11 25 16 26.8 11 50
22611-20-20WRW 22612-20-20WRW G1.1/4”X11 32 20 29.7 11 50
22611-24-20TRW 22612-24-20TRW G1.1/2”X11 32 20 28.8 13 55
22611-24-24WRW 22612-24-24WRW G1.1/2”X11 40 24 34.5 13 55
22611-32-24TRW 22612-32-24TRW G2”X11 40 24 32.5 16 70
22611-32-32WRW 22612-32-32WRW G2”X11 50 32 38 16 70
