美制SAE外螺纹带O形圈 ISO 11926 SAE J1926

美制SAE外螺纹带O形圈 ISO 11926 SAE J1926




详情介绍

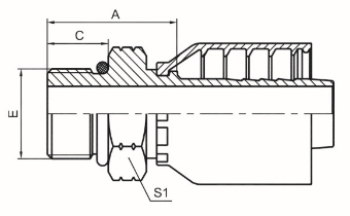

代  号 PART NO. 螺纹E 胶 管 HOSE BORE O形圈 尺寸 DIMENSIONS
编织 BRAIDED 缠绕 SPIRAL THREADE 公称内径 DN 标号DASH RING A C  S1
16011-04-04RW -- 7/16”X20 6 04 O904 21.1 9.1 14
16011-05-04RW -- 1/2”X20 6 04 O905 21.1 9.1 17
16011-06-05RW -- 9/16”X18 8 05 O906 21.9 9.9 17
16011-06-06RW -- 9/16”X18 10 06 O906 21.4 9.9 17
16011-08-06RW -- 3/4”X16 10 06 O908 24.6 11.1 22
16011-08-08RW 16012-08-08RW 3/4”X16 12 08 O908 25.6 11.1 22
16011-10-08RW 16012-10-08RW 7/8”X14 12 08 O910 29.2 12.7 27
16011-10-10RW 16012-10-10RW 7/8”X14 16 10 O910 29.7 12.7 27
16011-12-10RW 16012-12-10RW 1.1/16”X12 16 10 O912 33.1 15.1 32
16011-12-12RW 16012-12-12RW 1.1/16”X12 20 12 O912 32.1 15.1 32
16011-16-16RW 16012-16-16RW 1.5/16”X12 25 16 O916 35.3 15.1 38
