SAE 法兰3000PSI

在线咨询
全国服务热线 :
SAE 法兰3000PSI
数据展示

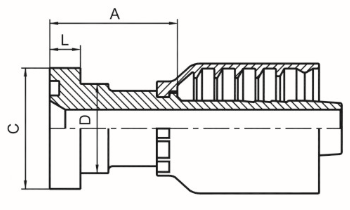

代  号 PART NO. 法兰型号 胶 管 HOSE BORE 尺寸 DIMENSIONS
编织 BRAIDED 缠绕 SPIRAL FLANGE SIZE 公称内径 DN 标号DASH A C D L
87311-08-08RW 87311-08-08RW 1/2” 12 08 47.5 30.2 24 6.73
87311-12-08RW 87311-12-08RW 3/4” 12 08 48.5 38.1 31.7 6.73
87311-12-10RW 87311-12-10RW 3/4” 16 10 49 38.1 31.7 6.73
87311-12-12RW 87311-12-12RW 3/4” 20 12 48 38.1 31.7 6.73
87311-12-16RW 87311-12-16RW 3/4” 25 16 51.2 38.1 31.7 6.73
87311-16-12RW 87311-16-12RW 1” 20 12 51 44.4 38 8
87311-16-16RW 87311-16-16RW 1” 25 16 54.2 44.4 38 8
87311-16-20RW 87311-16-20RW 1” 32 20 54.2 44.4 38 8
87311-20-16RW 87311-20-16RW 1.1/4” 25 16 59.2 50.8 43 8
87311-20-20RW 87311-20-20RW 1.1/4” 32 20 59.2 50.8 43 8
87311-24-20RW 87311-24-20RW 1.1/2” 32 20 69.2 60.3 50 8
87311-24-24RW 87311-24-24RW 1.1/2” 40 24 70 60.3 50 8
87311-32-24RW 87311-32-24RW 2” 40 24 72 71.4 62 9.53
87311-32-32RW 87311-32-32RW 2” 50 32 75.5 71.4 62 9.53
